My wife's computer has given up. I think the motherboard blew up. I'm thinking of replacing it with a cheap mini-ITX board with an Intel Atom processor on it, since all she needs the computer for is browsing.

I've figured out that her ATX case can fit an mini-ITX board, and I have most of the other components lying around, but my main wonder is: can I power the board from the existing ATX power supply? Are the power cables compatible?

Dave Van den Eynde
  • 161
  • 1
  • 2
  • 6

2 Answers2

5

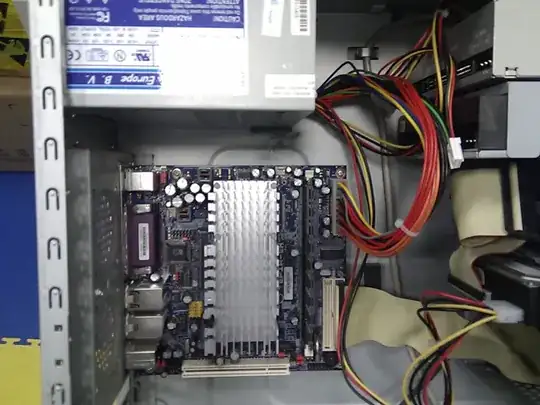

Yes, I'm doing it right now. Just make sure you don't choose a board that's designed for use with a 12V wall-wart as they have a round DC power jack (like many laptops) on the back.

enter image description here

Linker3000
  • 27,498
  • 3
  • 52
  • 73
  • I do exactly this same thing on my old Media Server. The board was an ITX, and the PSU was ATX. – Machado Dec 07 '11 at 17:12
0

Reading the detailed specifications for many of these mini-ITX motherboards has revealed that so far they all specify that they use the "20+4" ATX Power Supply connector, so I'm fairly confident that this will work without a hitch.
