38

I've seen fanned frets on some extended-ranged classical and electric guitars. What are the benefits of guitars with fanned frets? Are there any drawbacks?

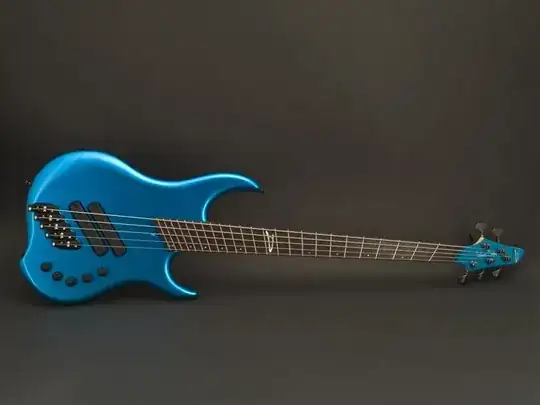

enter image description here

Shevliaskovic
  • 30,929
  • 20
  • 117
  • 224
brian
  • 2,291
  • 5
  • 22
  • 26
  • See this related answer on scale length; brief discussion of fanned frets at the bottom: http://music.stackexchange.com/a/1091/36 – Alex Basson Apr 28 '12 at 23:08

5 Answers5

31

Multi-string guitars

The idea of fanned frets is, in essence, to combine the baritone or bass guitar with the regular guitar in one instrument. Fanned frets enable strengthening the tone of the lower strings by giving them a longer speaking string length. They can also enable a high string that can be tuned higher than is possible on a conventional guitar by giving it a shorter vibrating length, enabling a higher-tuned string that won't break under the tension.

Classical

In the modern era the technique was first used on an 8-string guitar designed by classical guitarist Paul Galbraith and built by luthier David Rubio. Galbraith wanted an instrument where he could play notes one 5th lower than on a standard 6-string, and one 4th higher as well, adding a full extra octave to the instrument. He called his design the "Brahms guitar" because he found he could play convincing arrangements of Brahms solo piano repertoire on his instrument. He then built up his own repertoire of arrangements where he plays solo classical guitar with lower bass parts and a fuller sound.

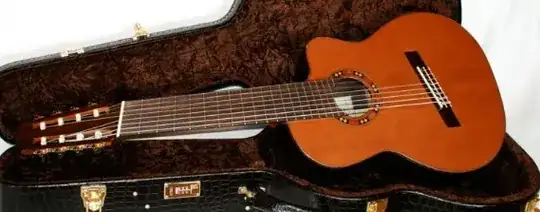

enter image description here

Bartolex 8-string fanned-fret classical guitar

Low "A" to high "a"

Jazz

Next up came Charlie Hunter, who worked with luthier Ralph Novak to create an 8-string electric guitar that has the range of the regular 6-string but also adds a full octave lower. (This design has a longer scale length enabling the extra bass range, but doesn't enable any higher notes). Charlie Hunter plays in a style where he covers the range of both the bass guitar and the electric guitar all by himself (Ralph Novak's slogan is "Fire you bass player"). Hunter usually performs with just himself and a drummer.

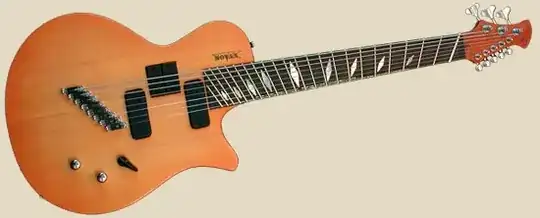

Novax Charlie Hunter guitar

Novax Charlie Hunter 8-string fanned-fret jazz guitar

Low "E" to high "e"

Metal

Now progressive heavy metal and djent guitarists are getting into the game. Strandberg Guitarworks makes a Misha Mansoor model.

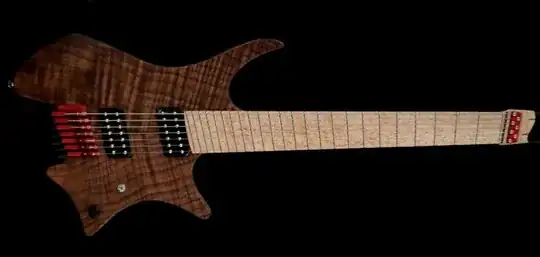

Strandberg Misha Mansoor guitar

Strandberg Misha Mansoor 7-string fanned-fret guitar

Low "B" to high "e"

Here are some luthiers that build 8-string fanned-fret classical guitars.

Here are some luthiers that build 8-string fanned-fret jazz guitars.

A well-known company that makes more hard-rock oriented guitars

Six-string guitars and bass guitars that use fanned frets

The technique of fanned frets has also been applied to the conventional 6-string guitar and the conventional 4, 5 and 6-string bass guitar. The theory here is that the lowest strings and the lowest notes make a stronger, fuller sound by giving them extra vibrating length, and the upper strings get a brighter, clearer sound by giving them a shorter vibrating length.

The best example is Dingwall bass guitars, whose low "B" string has a scale length of 37 inches (940 mm), while a conventional bass guitar with a low "B" string has a scale length of 34 or 35 inches (864 mm or 889 mm)

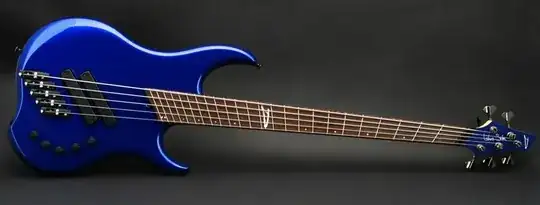

Dingwall Leland Sklar signature bass guitar

Dingwall Leland Sklar signature 5-string fanned-fret bass guitar

Low "B" to high "G"

  • what about drawbacks? is playability affected? – brian Apr 28 '12 at 23:29
  • 1
    I have never owned a fanned-fret guitar. I have just played one or two for a few minutes at trade shows. It seems to me that one could become accustomed to it with time. But making use of extra strings, different tunings and an extended range would certainly require practice to develop new techniques. –  Apr 29 '12 at 02:11
  • As a commentary on tuning... I thought I'd heard that Charlie Hunter's 8-strings are the lowest 3 bass strings + the top 5 Guitar strings... E, A, D + A, D, G, B, E (low to high); and a commentary on 7-string "metal/shred" is often a low A rather than B (look at me! one finger power chords!), dropping everything another half-step is not unheard of either (Ab, Eb, Ab, Db, Gb, Bb, Eb)... I even had one guy in the studio that dropped it another half step (but that low of a tension get's floppy on too short a scale length and leads to intonation problems). – David Axtell Moore II May 28 '12 at 23:59
  • What are "djet guitarists"? – Some Dude On The Interwebs May 25 '15 at 22:45
  • @DavidAxtellMooreII I've used low tunings on acoustic guitars, you can compensate somewhat with bigger strings to pull it back from being flabby. With acoustics, sometimes the wood resonates better in a different range. (I imagine that's somewhat true for electric as well, but I haven't experimented with this and cannot confirm.) – luser droog Sep 02 '15 at 01:47
17

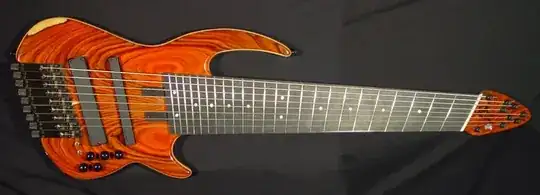

As luthier Chris Larkin explains for this 9 string bass monster - To get suitable tension on the huge variation of string sizes it required different scale lengths for each string and so needed fan frets.

enter image description here

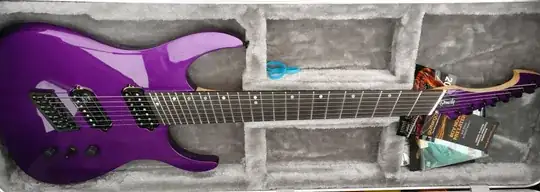

I managed to find a 7-string fanned fret guitar I really liked (The Ormsby HypeGTR), so I thought I'd buy it and experiment to see exactly what the benefits are.

  • The tension benefits have already been discussed - no need for a flappy bottom string to get those low notes. I have been using a low A or B on this, but I have also taken it down to a really low E without too much slap.
  • But another real improvement not previously mentioned: I no longer need to perform that annoying wrist twist and scrunching of fingers to play up at the top end. I can now easily play barre chords above the 20th fret! This makes a huge difference to my playing technique.

enter image description here

Doktor Mayhem
  • 36,672
  • 9
  • 65
  • 153
6

The question of: "What are the benefits of guitars with fanned frets?" is a good question. The correct answer depends on what your intentions are. If all you ever want to do is strum chords to back up your singing voice or play along with others, then you'll do just fine on your standard six string guitar.

However, if your ambitions run far beyond playing backup with other instruments to soloing on one guitar, then you've got a world of trouble. It's been said the guitar is an easy instrument to play, but a difficult instrument to play well. And so it is. Why is that? It's because great music is the range of the Grand Staff and then some. That's the nature of the beast. So there are only three options! Either 1) start or join a band or an orchestra, 2) increase the string count, or 3) possibly do many additional practice sessions trying to do what the human hands were never designed to do.

There are three things that can trouble great guitar playing: 1) String count. 2) String length. And 3) Choice of tuning. If you can bring all three of these parameters together in the correct order, you can make many many technical problems go away.

How many strings should the guitar have? Ten strings seems to work well when tuning in 4ths, which is what medium sized guitars are usually tuned to. I tune my fan fretted ten string classical in fourths with my third right in the middle between my 5th and 6th string. This allows me to preserve six string chord shapes. In fact it opens up another useful chord shape not found on six stringers.

I play five wound bass strings and five unwound treble strings. This configuration works really well and allows me to chase music I wouldn't otherwise go after. In fact: There's very little music I can't chase after. I like to call my guitar a Grand Staff guitar because it makes sense to write music for it using the Grand Staff as opposed to how it's usually done.

It may surprise some people I play a fan fretted ten stringer, and as far as I know it's the only one so far in existence. What surprises me is no one ever thought of it before. In any case I have played six, seven, and an eight stringers before I got the ten stringer. So I know a few things about string count, string length and choice of tunings. This works and it works very well.

Any specific questions to playing a fan fretted ten stringer, I'll be happy to answer.

pcurry
  • 113
  • 5
user10542
  • 61
  • 1
  • 1
5

The second most obvious difference (advantage?) is that fanned frets accommodate the human construct better (than parallel frets). If one simply moves the left hand away from the body, the elbow being the pivot point, the hand naturally tilts or fans away from the body. As the hand moves to the right, the angle of the hand the moves (pivots) in the other (towards the body). Fanned frets accommodate the natural ergonomics of the player's hand, angle causing less stress on the fretting hand as it contorts less. Of this I have no doubt as I have "A-B (d)" the two side by side.

Robert Juenemann
  • 51
  • 1
  • 1
  • Another way to consider... The wrist is more relaxed with fan frets as it compensates less for the changing angles imposed by the differing fret positions (imposed by the elbow) as the hand moves across the board. Less stress on the wrist means the left hand tires at a slower rate. – Robert Juenemann Nov 05 '16 at 05:40
  • 1
    This is IMO the only real advantage of fanned frets. All that fuzz about string tension is unsubstantiated, because to that end you could simply give _all_ strings the long scale and merely tune the upper strings lower than standard. What fanned frets give you is just better playability than such an extended-scale guitar. – leftaroundabout Nov 05 '16 at 10:59
1

Two things: one, this is nothing new. The orpharion- a kind of lute with metal strings in the Renaissance- had fanned frets.

http://photos1.blogger.com/blogger2/1788/785959171655748/1600/barley_orpharion_lighter_800.jpg

The other thing: yes, the idea is to get longer bass strings (or shorter treble strings). But if you look at the difference in length fanned frets give you, it's not much at all- barely a semitone if even that. Thus, I suspect that fanned frets are more about appearance than actual acoustical advantage, which is negligible.

Scott Wallace
  • 6,314
  • 15
  • 23
  • I have the intuition that it makes intonation a little easier, but I'm not sure I can back that up. Certainly I got the fan fret 7-string I bought recently because it was beautiful and I was curious about the feel, rather than any idea that the tone would be better. – pcurry Sep 09 '19 at 20:50
  • Another advantage of fanned frets is ergonomic: they require less flexion of the wrist as you go down the neck. – Scott Wallace Sep 16 '19 at 14:25
