How to write a pickup measure with 5/16 duration in Lilypond?

Question

I'm trying to write sheet music for a piece with a pickup measure of 5 sixteenth notes. Lilypond has the \partial command for this, but it only accepts a single duration. That duration may be dotted, but that doesn't help since I need 5 notes, not 3, 6 or 7.

I've tried various combinations of partials, e.g. using the command twice:

\version "2.16.0"

\relative c'' {
    \key g \major
    \partial 4 \partial 16 g16 g fis d b | e2
}

which produces a barcheck warning

warning: barcheck failed at: 1/4
   \partial 4 \partial 16 g16 g fis d b
                                        | e2

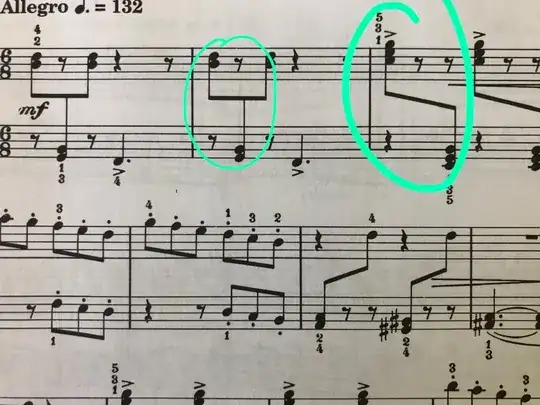

and a wrong result:

I've tried other things like \partial { 4 16 } or \partial 4~16 but nothing seems to work; either the pickup measure is ignored or it has a wrong length.

Is there any solution for this? I don't want to use a pickup measure of one half note with 3 sixteenth rests.

score 15 · Accepted Answer · edited Oct 22 '20 at 14:49

15

\partial 16*5. Some people prefer writing \partial 1*5/16 which scales \partial 1 by the fraction 5/16, but I'd lean towards the simpler version.

edited Oct 22 '20 at 14:49

Glorfindel

3,612
5
21
36

answered Oct 21 '20 at 21:19

1

Clever! I've seen that `*` for multi-measure rests, but never for notes or things like this. I even't can't find a definition for this notation in the documentation. Or is it a general Scheme trick? – Glorfindel Oct 22 '20 at 06:14

Glorfindel · Answer 2 · 2020-10-22T14:51:32.497

I've found one workaround, but I'm not sure I really like it since the sum of the \partial durations is longer than the actual pickup measure:

\version "2.16.0"

\relative c'' {
    \key g \major
    \partial 4 g16 \partial 4 g fis d b | e2
}

and Lilypond warns about this:

trying to use \partial after the start of a piece
   \partial 4 g16
                  \partial 4 g fis d b | e2

but the result is correct:

Using \partial 4 g16 g fis d \partial 16 b | e2 instead doesn't work properly, since it inserts a bar line after the d already (and produces a warning in the compiler):

I'm really interested in a better solution (if it exists)!
