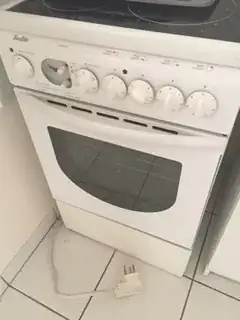

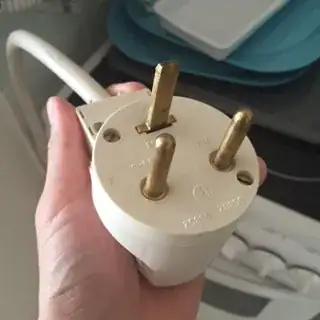

Trying to use a second-hand oven (bought in France) but it has this strange plug I've never seen before:

enter image description here enter image description here

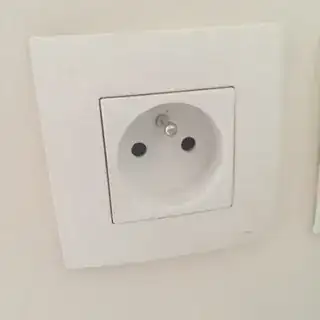

The wall sockets in the kitchen are just the usual EU one:

enter image description here

I searched the hardware store for an adapter, but could only find the inverse direction. And if I search for "four monophase adaptateur" ("four" is oven in French) then I also only see pictures of adapters going the other direction.

What is the plug? Is there such thing as an adapter to convert to a normal socket, or some practical reason why this only possible in the inverse?

If there is no such adapter, what will be involved to get this oven working - will it be as simple as wiring up the correct socket into the wall, or there may be more involved?

wim
  • 1,165
  • 1
  • 8
  • 11
  • Leaving as a comment as I claim no expertise in continental appliances. I am guessing that the plug has information regarding voltage and amperage on it. A local appliance repair center should have a cord and plug that you can install to match your receptacle. This is assuming that the receptacle meets the minimum requirements of the stove. – mikes Aug 19 '15 at 23:51
  • 4
    You don't typically plug a stove into a standard wall outlet. You need a separate circuit run that's rated at a high enough amperage to handle the high load of a range. – DA01 Aug 20 '15 at 04:49
  • Also, where is the receptacle located? Is this the one located behind the range? (Do you *have* one located behind the range?) Receptacles for electric ranges are typically located on the floor or on the wall near the back of the range itself. – DA01 Aug 20 '15 at 04:56
  • Finally, it says in your profile you are in Melbourne? If so, note that amp and voltage standards offer differ quite a bit from country to country. You need to make sure you are plugging that stove into a dedicated circuit rated for the amperage and voltage the range uses. – DA01 Aug 20 '15 at 04:59
  • @DA01 I'm from Melbourne but currently located in Paris – wim Aug 20 '15 at 05:44
  • Did you try searching the internet using the printing on the plug? A quick search for "55802 55852", turned up [this](http://www.leboncoin.fr/bricolage/653078069.htm). – Tester101 Aug 20 '15 at 12:48
  • American, but most ovens have a removable cord+plug. You should be able to get a replacement appropriate for your house from the hardware store. Check the back of the oven or the manual for a wiring diagram and possibly directions. – user3757614 Aug 20 '15 at 17:40

2 Answers2

9

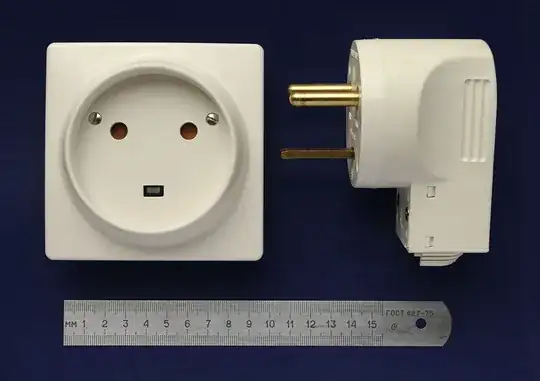

It looks like an NF C 61-315 standard French single phase plug:

NF C 61-315

These are are rated for 400V, 32A on a single phase. The socket you have pictured looks like a French style Schuko (CEE 7/3), which is typically only rated to around 16A. My guess is that unless you already have a socket that was intended for use with an electric stove, the wires are likely not a suitable gauge to handle the current demand.

If you have an outlet with the appropriate wire gauge, it would probably just be a matter of replacing either the outlet or the plug. If you have any doubts, I'd consult an electrician before attempting to connect it.

Image credit: "Power connector Legrand 32A" by Kae - Own work. Licensed under CC BY-SA 3.0 via Commons - https://commons.wikimedia.org/wiki/File:Power_connector_Legrand_32A.jpg#/media/File:Power_connector_Legrand_32A.jpg

Comintern
  • 6,875
  • 1
  • 15
  • 22
1

I'm from the US, but I know about electricity from other parts of the world. This plug/cord you have here is probably a NF C 61-315 single-phase French plug. You have to replace the Schuko receptacle with the one listed above.

Lincoln Nguyen
  • 11
  • 1
  • 3
    I don't see how this has added anything to the answer that's already here and was accepted 5 years ago. Nothing at all wrong with adding more detail in, even years later, but please make it _more_ detail, not just more of the same. – FreeMan Dec 07 '20 at 17:26
