I am doing a DIY on my LG refrigerator. My freezer/refrigator fan evaporator motor gave out. I ordered the part but the parts place sent me the wrong motor twice. It is different from the original part but they claim it is for that model ( I can only assume that maybe this is the aftermarket replacement). It has the same amps and voltage DC but is bigger and has different numbers on the case that I am not sure what represent. Can't get a resolution or answer to my question from them and I have zero knowledge on this stuff so I am coming here to check if it would be compatible/safe because the new motor technically fits.

I'm not really sure if this is a big deal in the first place, I can't image anything going wrong but I also don't want to be further damage my refrigerator.

My LG refrigerator model is lrfws2906d

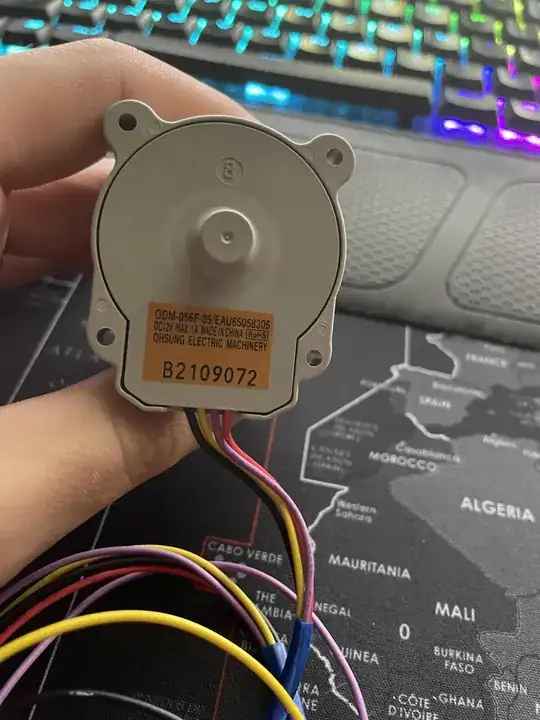

Here is the original motor(smaller and different numbers on the case, 6 and 8) enter image description here

enter image description here

The new motor that came in has these markings(L7-4,R7-3) enter image description here enter image description here

Alex Radwan
  • 3
  • 1
  • 1
    Usually if it has the same voltage and amps and fits the mounting it should work. Most of the rest is difference in efficiently and quality. – crip659 Apr 14 '23 at 13:39

2 Answers2

1

If it fits in the space available, has compatible mounting, shaft dimensions, and has the same electrical (volts & amps) and mechanical (speed & direction) characteristics, then I don't see why you couldn't use it

user28910
  • 546
  • 2
  • 5
0

Does it FIT? The replacement might, just might, be a part re-engineered to not fail like the original, smaller one did. If it fits in the fridge, that seems quite likely.

Ecnerwal
  • 174,759
  • 9
  • 212
  • 440
