I have an older Lennox Conservator 3 G16 with no terminal strip. How do I connect a C wire or C adapter? From what I have seen online nothing matches my furnace.
Asked
Active
Viewed 26 times
1
-
No sorry that's all I have at the moment – Reylene Jan 30 '23 at 19:17
-
Does this help? [Connect C wire Lennox G16](https://diy.stackexchange.com/questions/119941/connect-c-wire-lennox-g16) – isherwood Jan 30 '23 at 19:23
-
No I do not have a panel like that in my furnace. I believe they call it the terminal strip or control panel – Reylene Jan 30 '23 at 19:26
-
Where is your thermostat that controls it now ? – Ruskes Jan 30 '23 at 19:39
-

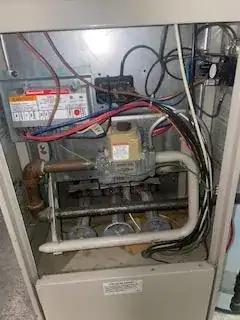

The thermial strip is in the top left corner – Ruskes Jan 30 '23 at 19:42
-
FYI, furnace connections are usually in the lower compartment, not in the burner area. Follow them in from outside the cabinet. – isherwood Jan 30 '23 at 19:51
-
@Ruskes, those look like safety device wires. The t-stat board is down below. – isherwood Jan 30 '23 at 19:52
-
thank you for the pointers, Not at place with furnace now but will look this evening – Reylene Jan 30 '23 at 20:12
