I am needing to replace a broken ball-bearing for the Robot-Coupe CL50 D Ultra. Unfortunately, the company has been unable to send me the correct manual. Perhaps they do not have it, because there is a newer version (E) available only, which does not list this part. I am hoping to be able to identify the part in another way. Here is the image and measurements: unidentified ball-bearing for the Robot-Coupe CL50 D Ultra

Anyone able to identify this? The image shows a rough schematic with sizes in millimeters. It is in place to help rotate the central shaft of the cutting blades. The other ball-bearing in use is the SKF 6004RS.

Any help is most welcome! Thank you very much,

nxxy
  • 3
  • 2

1 Answers1

3

Search for:

"nadella needle roller bearing"

and I think you'll find some similar products.

You will want to carefully measure your application and pick the closest match from the available choices. My guess is that this is a standard hardware item and you should be able to match or cross it.

NADELLA Needle Roller Bearing

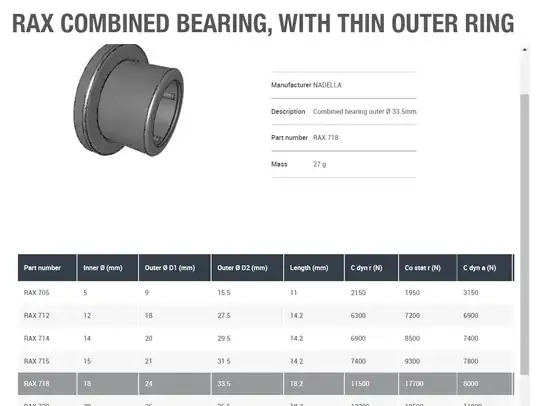

Looking at their catalog the RAX718 looks like it might be it:

Nadella RAX718

jwh20
  • 22,965
  • 2
  • 30
  • 64
