I am out of ideas on how to fasten this rail butting up to the wall. I don't think that using a bracket would give it enough strength if someone were to lean on it as its span is 6 feet and so there's a lot of torque. (Besides, a bracket would look ugly.) There is plenty of lumber behind the drywall (two sheets of 3/4 plywood) so there would be plenty of bite for a screw.

enter image description here

Wynne
  • 1,410
  • 4
  • 16
  • 32

2 Answers2

4

Any type of anchor/bracket at one end is not enough, unless there is more support along the length/other end. Six feet makes a good lever.

With good wood behind, a couple of good size screws driven into both sides should hold.

A bracket either under or on the outside will give more holding power. Brass brackets should look decent with that wood.

crip659
  • 19,018
  • 1
  • 27
  • 51
2

If you have good wood behind that drywall and don't want a visible bracket, I'd say that's a good use for a pocket screw.

enter image description here

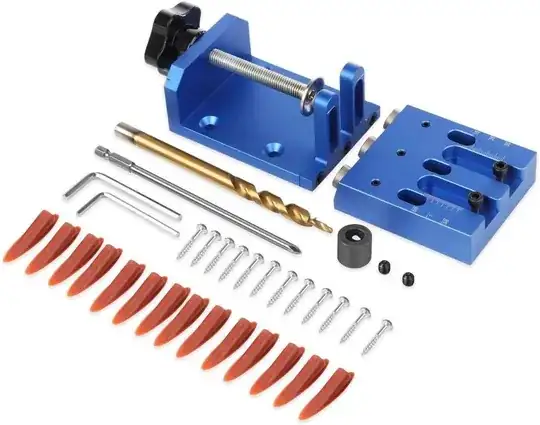

Picture is of a random pocket-hole kit from the Internet, but they all use the same principles. The hole is drilled at a 15-degree angle to the joint with a dual-diameter drill bit, then a screw is inserted into the large hole, passing through the smaller hole into the wood. Fill what's left with either dowel finished to match or wood putty.

Chris O
  • 6,084
  • 1
  • 6
  • 42
