What do you call the piece that holds a router bit's guide wheel in place?

Question

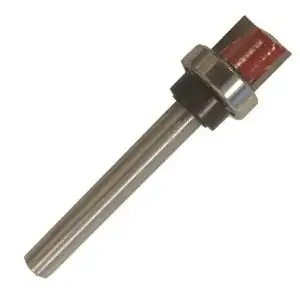

In the pic below, there's a black ring that holds the bearing guide wheel in place against the router bit. I need another one of those so I can position the guide wheel higher up on the shank. Knowing what that piece is called will give me something to actually search for.

enter image description here

score 3 · Accepted Answer · answered Feb 03 '13 at 18:45

3

Often called Stop collar or shaft collar.

answered Feb 03 '13 at 18:45

Wayfaring Stranger

3,355
1
16
17

1

I've also seen [lock collar](http://www.freudtools.com/p-243-repair-parts.aspx). – Maxime Morin Feb 03 '13 at 18:50
Collit.....old school name – shirlock homes Feb 03 '13 at 19:44
@shirlock- do you mean collet? I disagree. A collet provides a clamping force, often to hold a tool, to transmit a motive force. This is simply a stop to prevent parts from sliding up the shaft. IMHO of course :) – bcworkz Feb 03 '13 at 20:25
My bad, a collet is a type of chuck, like on a dremel tool etc. OPPS!!!! – shirlock homes Feb 03 '13 at 20:47
Shaft collar wins! http://www.menards.com/main/search.html?search=shaft+collar&sf_categoryHierarchy=&queryType=category – oscilatingcretin Feb 03 '13 at 21:33
