I have a shower faucet that is spraying out the back of the middle connection (that one that goes up to the shower-head):

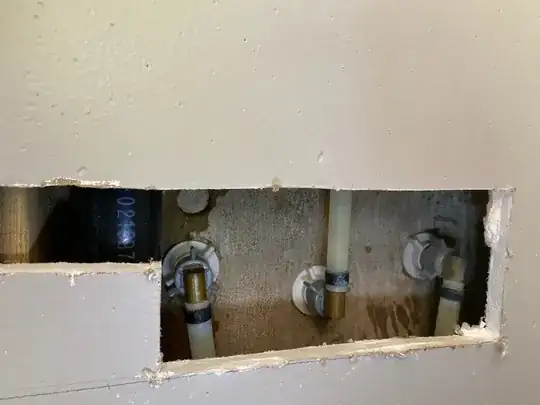

back of the shower, where the pipes attach

I'd like to remove the grey connection (the swivel elbow) so I can see what the washer inside looks like and replace it if needed but the grey end is more than finger tight, I mean I can't loosen it with my fingers alone.

It only has 3 "wings" and it's plastic and I don't want to break it.

I bought a little (6") adjustable wrench but it doesn't feel I'm getting a good grip on it.

Is there a tool that's mean to be used with this swivel elbow end? Seems like this would be easier with the proper tool.

For context, this is in a 1997 Schult mobile home.

The leak drilled a hole in the drywall behind it:

drywall with a hole in it from the water leak

Aleksey Tsalolikhin
  • 265
  • 2
  • 7

1 Answers1

2

Do an online search for Basin Wrench. Available from just about anywhere.

john christensen
  • 66
  • 4
  • 1
    Thank you! I watched a couple of videos on how to use a Basin Wrench and was able to unscrew the end with my fingers, putting even pressure on all 3 wings. Your reply was helpful! :) – Aleksey Tsalolikhin Aug 23 '21 at 00:58
  • 1
    The black band around the feed line looks like it has some corrosrion on it. Could that be the source of the leak? – john christensen Aug 23 '21 at 16:32
  • 1
    Or, John, it's the result of some hardness in the water settling on the fittings after the water has sprayed around then evaporated. I see white marks on at least 2 of those crimp rings. – FreeMan Aug 23 '21 at 18:27
  • The water was spraying out from the grey/brass parts, below the black band. – Aleksey Tsalolikhin Aug 24 '21 at 12:03
  • I am planning to replace the middle hose, complete with ends. I got the bottom end free but the top end disappears into a case that is held down with square-hole screws. Hoping to buy a square screwdriver today so I can open the case and get the shower hose out to replace it. – Aleksey Tsalolikhin Aug 24 '21 at 12:05
