We had double-glazed sliding patio doors installed about 18 months ago. On separate occasions over the past couple of months, two of them have spontaneously shattered from around the centre of the pane. Both of them inside panes which rules out unknown impacts from outside.

enter image description here

The first one was in the bedroom; I had just gone to bed and could hear what I thought was rain or sleet against the window. I thought that odd as it was a perfectly clear sky just before I went to bed. I opened the blind and the whole inside window had shattered. It was still in-situ (thankfully!). The installer is currently in the process of trying to get this one replaced under warranty from the manufacturers. But when the 2nd window shattered he said he'd have tremendous trouble trying to convince the manufacturer of two separate faults.

He went on to say that if it was a manufacturing or installation fault, then the glass cracks/shatters from around the edge of the glass. But these are near enough bang in the middle (excuse the pun!). At no point have they been hit with anything. Indeed, the installer said that these units are incredibly strong, and that they have trouble breaking them in the skip, especially when trying to break them from the middle on the pane.

I read online about this and how that it could be caused by Nickel Sulfide contaminants during the manufacturing process; these contaminants expand with variations in temperature and it's the expansion that causes the glass to shatter. That explanation certainly fits with both of my scenarios; the 1st occurrence was at the end of summer; it was a very hot day, but the temperature plummeted in the evening and it was the first night that we had a frost. The 2nd occurrence happened recently (in the middle of winter here in the UK); it had been about -3c for a couple of days and the wood burner had been on almost all the time. That window shattered over-night.

The glazier that installed them says he has never heard of such things happening, but another glazier I spoke to said that it's not uncommon, especially with large variations in temperatures.

Has this happened to you? Do you know what caused it?

Steve Dunn
  • 195
  • 7
  • 4
    *But when the 2nd window shattered he said he'd have tremendous trouble trying to convince the manufacturer of two separate faults.* Actually, 1 is a fluke that can be manufacturing defect or mishandling or whatever. 2 is much **more** likely to be a manufacturing defect - i.e., a whole batch bad - so the manufacturer will likely be quite interested in the situation (even if they don't want to pay up). Unless you live next to batting cages. – manassehkatz-Moving 2 Codidact Jan 19 '21 at 15:23
  • 3
    Just wondering if manufacturing or installation defect. If they were installed in place too tight, expansion might have cause it also, but it would be much less likely than a manufacturing defect or physical damage(being hit). Would also google the manufacturer plus shattering glass, to see if there are other reports. – crip659 Jan 19 '21 at 15:33
  • 2
    It looks like an impact broke the glass. There are fracture lines radiating out from a single point. Perhaps a near-sighted large bird flew into it or baseball or some other object struck it. – Steve Wellens Jan 19 '21 at 15:58
  • 1
    Good point @manassehkatz-Moving2Codidact re. *more* likely a manufacturing fault. – Steve Dunn Jan 19 '21 at 16:01
  • @crip659 - I will do that - good idea. It will be very interesting to see if there are other reports – Steve Dunn Jan 19 '21 at 16:01
  • @SteveWellens - it's definitely not impact related. It's the **inside** pane (on both occasions) – Steve Dunn Jan 19 '21 at 16:02
  • 1
    When I was in high school, there was a broken sliding door due to impact that most definitely originated from the inside. Looked a little different though, as the kid ran all the way through :-) – manassehkatz-Moving 2 Codidact Jan 19 '21 at 16:04
  • 1
    I’m also wondering if they were installed too tight or if settling of the house caused enough compression to break the glass. That would still probably be a case of extremely tight installation tolerances. – daneb Jan 19 '21 at 16:04
  • 1
    Honda had similar problem a few years with their sun/moon roofs. Can use google to find more info, since I don't remember the reason. – crip659 Jan 19 '21 at 16:09
  • 2
    I have seen quite a few outside ones shatter birds and rocks, the only one I have seen inside was from an air soft (plastic pellet) gun. The owners were claiming it was improperly installed I was wondering what the little green balls were. Then I saw the kids in the back yard playing with those guns. The owner swore the kids never used them inside and they were safe, inside is where I first saw the BB’s made of plastic. I had an old window on the truck I asked the boy to shoot it and it did break the window at ~10’, 3 meters. The boys confessed after being questioned. Defects 2 in 1 home ??? – Ed Beal Jan 19 '21 at 16:53
  • 1
    This happened to a neighbor of mine. Impact very unlikely. No kids, sliding door opened to screened enclosure, fenced backyard. Most likely caused by thermal expansion stress (Florida). Possibly aggravated by a manufacturing defect, a nick in the edge of tempered glass can expand catastrophically. – Mattman944 Jan 19 '21 at 17:21
  • The manufacturer was Saint Gobain – Steve Dunn Jan 19 '21 at 17:22
  • This is a great page: https://mccoymart.com/post/spontaneous-breakages-in-tempered-glass/ When it's light again, I'll look for the 'wings of a butterfly' marker which is a tell-tale sign of Nickel Sulfide contamination. It also says most impacts would cause the glass to fall out of the frame. – Steve Dunn Jan 19 '21 at 17:27

1 Answers1

2

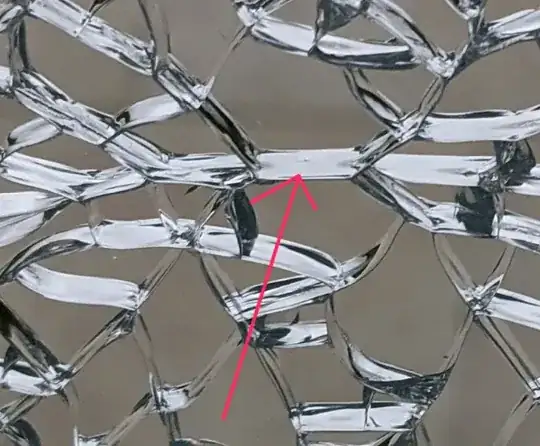

I'm 95% confident that, in this case, it was nickel sulfide contaminant. I took photos of the epicenter of the shatter and zoomed in on the computer. The contaminant is pretty clear to see: enter image description here

This is pretty much exactly what articles like these show: https://www.constructionspecifier.com/fully-tempered-glass-and-spontaneous-fracture/2/
