Anyone know what bit would fit this? I have only seen the 2-prong spanner bits...

enter image description here

enter image description here

Rawshark
  • 81
  • 6

3 Answers3

5

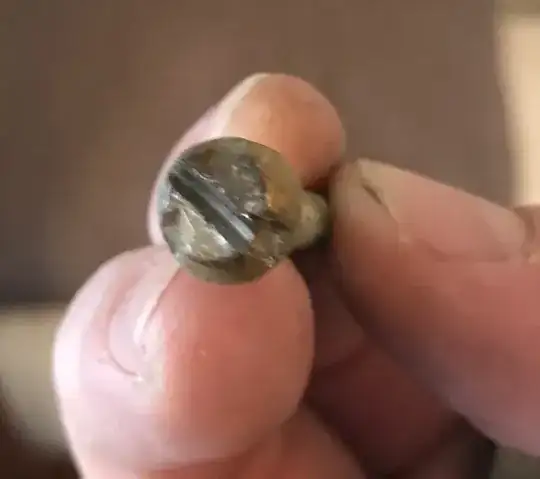

Here's what I eventually did to get the screws out:

  • Used a Dremel rotary tool with a metal cutting wheel on it
  • Cut slots across the head of each screw
  • Used a flathead screwdriver to remove them

Hope that helps anyone who might come across this issue in the future.

enter image description here

Rawshark
  • 81
  • 6
4

These are indeed very rare. And old. Google image search kept showing old radio sets.

After a lengthy search I found one source that should do the trick for you.

Microtech Medium Domed Tri-Wing Wrench Tool Bit (bladehq.com)

enter image description here

SDsolar
  • 1,999
  • 1
  • 13
  • 24
  • 1
    Wow, thank you so much! I also did a lengthy search but came up empty. I also tried unsuccessfully to tap one out with a hammer and a screwdriver but it didn't budge, so you have really saved the day! – Rawshark Apr 21 '18 at 15:27
  • Soooo it seems the size is way off. I posted another pic in the original post above which shows how tiny the bit is compared to the screw. Any other ideas? https://i.stack.imgur.com/Ns1AF.jpg At this point I'm also open to the best way to remove them without a bit (drilling, tapping etc.)...? Thanks for any help! – Rawshark Apr 29 '18 at 14:58
  • Maybe vice-grips? – SDsolar Apr 29 '18 at 15:56
  • Yeah I tried that but the screw head itself is tapered so there is no way to get purchase... – Rawshark Apr 29 '18 at 18:34
  • 3
    No worries - Dremel to the rescue! Cut a slot in the head and used a flathead screwdriver. – Rawshark Apr 29 '18 at 21:23
  • 1
    RIGHT ON! Would you please post that as an answer? Make it longer than a comment, and simply give a step-by-step solution. SE will make you wait a day or two then you should accept it. Remember, we are building a database here that will last for years. I often find that Google sends me to Q&A's here that were posted 6 or 7 years ago. Most people skip over comments, remember. – SDsolar Apr 29 '18 at 22:31
1

These are tri-groove screws. Tri-groove drivers and sockets are available from McMaster Carr, among other places. The ones pictured above are probably #10.
