< Report on the Radiolaria

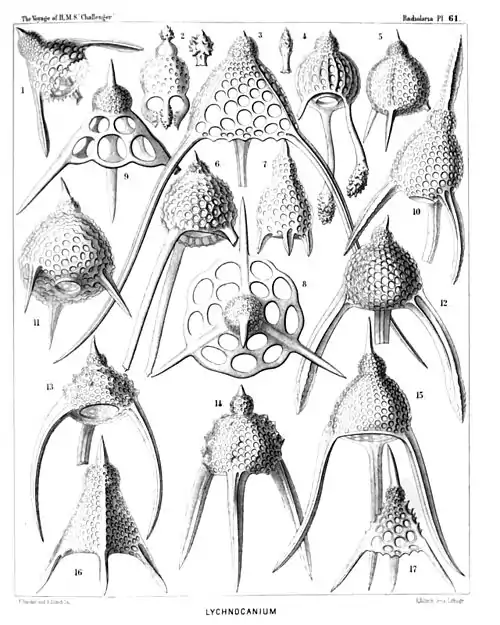

PLATE 61.

Legion NASSELLARIA.

Order CYRTOIDEA.

Family Tripocyrtida.


PLATE 61.
Tripocyrtida.
Diam. Page.
Fig. 1. Dictyophimus cortina, n. sp., × 400 1197
Fig. 2. Lychnocanium pudicum, n. sp., × 200 1230
Fig. 3. Dictyophimus longipes, n. sp., × 400 1197
Fig. 4. Lychnocanium clavigerum, n. sp., × 300 1230
Fig. 5. Dictyophimus lasanum, n. sp., × 300 1197
Fig. 6. Lychnocanium favosum, n. sp., × 300 1225
Fig. 7. Lychnocanium lanterna, n. sp., × 300 1224
Fig. 8. Dictyophimus plectaniscus, n. sp., × 300 1196
Apical view.
Fig. 9. Dictyophimus plectaniscus, n. sp., × 300 1196
Lateral view.
Fig. 10. Lychnocanium fenestratum, n. sp., × 400 1228
Fig. 11. Lychnocanium pyriforme, n. sp., × 300 1225
Fig. 12. Lychnocanium fortipes, n. sp., × 300 1227
Fig. 13. Lychnocanium tuberosum, n. sp., × 300 1227
Fig. 14. Lychnocanium nodosum, n. sp., × 300 1225
Fig. 15. Lychnocanium sigmopodium, n. sp., × 400 1228
Fig. 16. Dictyophimus pyramis, n. sp., × 300 1196
Fig. 17. Dictyophimus triserratus, n. sp., × 300 1200
Plate 61.
Plate 61.

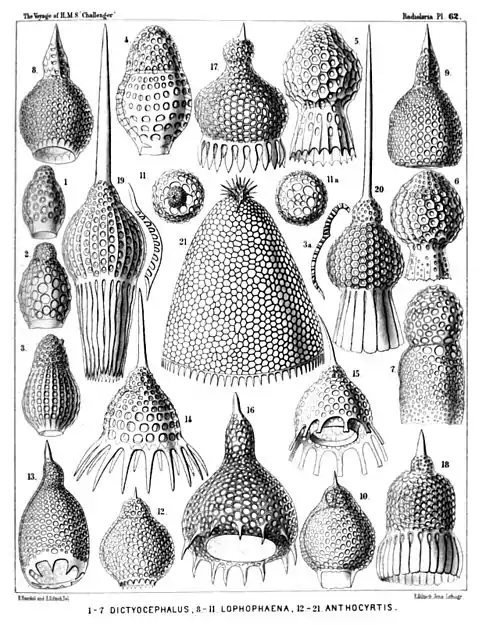

PLATE 62.

Legion NASSELLARIA.

Order CYRTOIDEA.

Families Anthocyrtida, Sethocyrtida et Phormocyrtida.


PLATE 62.
Anthocyrtida, Sethocyrtida et Phormocyrtida.
Diam. Page.
Fig. 1. Dictyocephalus australis, n. sp., × 300 1306
Fig. 2. Dictyocephalus mediterraneus, n. sp., × 300 1307
Fig. 3. Sethamphora costata, n. sp. (vel Dictyocephalus costatus), × 300 1251
Fig. 4. Dictyocephalus amphora, n. sp., × 400 1305
Fig. 5. Cycladophora (?) favosa, n. sp. (an Dictyocephalus?), × 400 1380
Fig. 6. Cycladophora (?) favosa, n. sp. (an Dictyocephalus?), × 400 1380
A variety with obliterated ribs (?).
Fig. 7. Dictyocephalus globiceps, n. sp., × 400 1308
Fig. 8. Sethocorys achillis, n. sp., × 400 1301
Fig. 9. Sethocyrtis oxycephalis, n. sp., × 400 1299
Fig. 10. Sethocorys odysseus, n. sp., × 400 1302
Fig. 11. Sethocyrtis agamemnonis, n. sp., × 300 1300
Seen from above (apical view).
Fig. 11A. Sethocyrtis agamemnonis, n. sp., × 300 1300
Seen from above, after removal of the cephalis.
Fig. 12. Anthocyrtium pyrum, n. sp., × 400 1276
Fig. 13. Anthocyrtis ovata, n. sp., × 300 1272
Fig. 14. Anthocyrtium chrysanthemum, n. sp × 400 1272
Fig. 15. Anthocyrtidium ligularia, n. sp., × 400 1278
Fig. 16. Anthocyrtidium cineraria, n. sp., × 400 1278
Fig. 17. Anthocyrtium campanula, n. sp., × 400 1274
Fig. 18. Anthocyrtium doronicum, n. sp., × 300 1276
Fig. 19. Anthocyrtium flosculus, n. sp., × 300 1277
Fig. 20. Anthocyrtium adonis, n. sp., × 300 1273
Fig. 21. Sethoconus anthocyrtis, n. sp. (vel Anthocyrtium sethoconium), × 300 1296
Plate 62.
Plate 62.

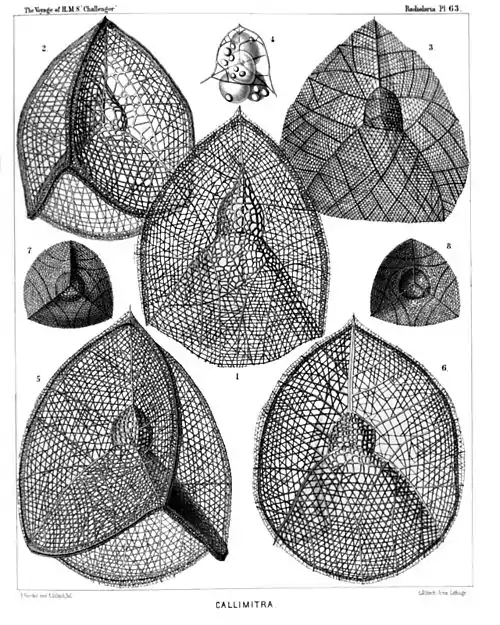

PLATE 63.

Legion NASSELLARIA.

Order CYRTOIDEA.

Family Tripocyrtida.


PLATE 63.
Tripocyrtida.
Diam. Page.
Fig. 1. Callimitra carolotæ, n. sp., × 400 1217
Lateral view.
Fig. 2. Callimitra annæ, n. sp., × 400 1217
Dorsal view.
Fig. 3. Callimitra emmæ, n. sp., × 300 1218
Lateral view.
Fig. 4. Callimitra emmæ, n. sp., × 400 1218
Cephalis alone, with the enclosed four-lobed central capsule, and the internal four divergent beams; surrounded by some scattered xanthellæ.
Fig. 5. Callimitra agnesæ, n. sp., × 400 1217
Dorsal view.
Fig. 6. Callimitra elisabethæ, n. sp., × 400 1218
Lateral view.
Fig. 7. Callimitra carolotæ, n. sp., × 200 1217
Seen from above (from the apical pole).
Fig. 8. Callimitra carolotæ, n. sp., × 200 1217
Seen from below (from the basal pole).
Plate 63.
Plate 63.

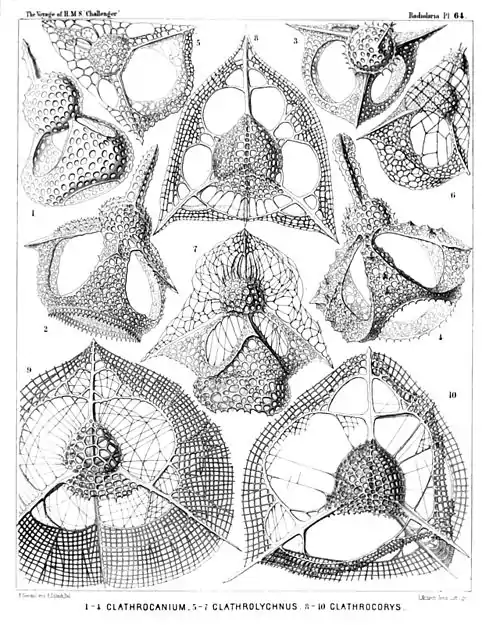

PLATE 64.

Legion NASSELLARIA.

Order CYRTOIDEA.

Families Tripocyrtida et Podocyrtida.


PLATE 64.
Tripocyrtida et Podocyrtida.
Diam. Page.
Fig. 1. Clathrocanium sphærocephalum, n. sp., × 600 1211
Fig. 2. Clathrocanium diadema, n. sp., × 600 1212
Fig. 3. Clathrocanium triomma, n. sp., × 600 1211
Fig. 4. Clathrocanium reginæ, n. sp., × 600 1212
Fig. 5. Clathrolychnus araneosus, n. sp., × 600 1240
Fig. 6. Clathrolychnus periplectus, n. sp., × 600 1241
Fig. 7. Pteropilium clathrocanium, n. sp., × 400 1327
Fig. 8. Clathrocorys murrayi, n. sp., × 600 1219
Fig. 9. Clathrocorys giltschii, n. sp., × 600 1220
Fig. 10. Clathrocorys teuscheri, n. sp., × 600 1220
Plate 64.
Plate 64.

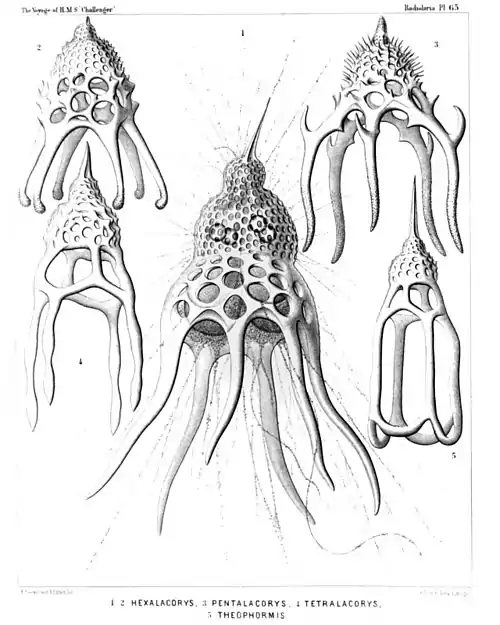

PLATE 65.

Legion NASSELLARIA.

Order CYRTOIDEA.

Family Phormocyrtida.


PLATE 65.
Phormocyrtida.
Diam. Page.
Fig. 1. Alacorys friderici, n. sp. (vel Hexalacorys friderici), × 400 1372
The central capsule, enclosed in the fenestrated shell, exhibits in its lower half four large club-shaped lobes, each of which includes in its upper part a large oil-globule. The uppermost, undivided part of the capsule includes the nucleus, which protrudes four small nuclear lobes through the four holes of the cortinar septum into the thorax. Numerous long pseudopodia arise from the granular sarcomatrix, which the capsule surrounds, and pass through the pores of the siliceous shell.
Fig. 2. Alacorys guilelmi, n. sp. (vel Hexalacorys guilelmi), × 300 1372
Fig. 3. Alacorys bismarckii, n. sp. (vel Pentalacorys bismarckii), × 200 1372
Fig. 4. Alacorys lutheri, n. sp. (vel Tetralacorys lutheri), × 400 1370
Fig. 5. Cycladophora goetheana, n. sp. (vel Lampterium goetheanum), × 300 1376
Plate 65.
Plate 65.

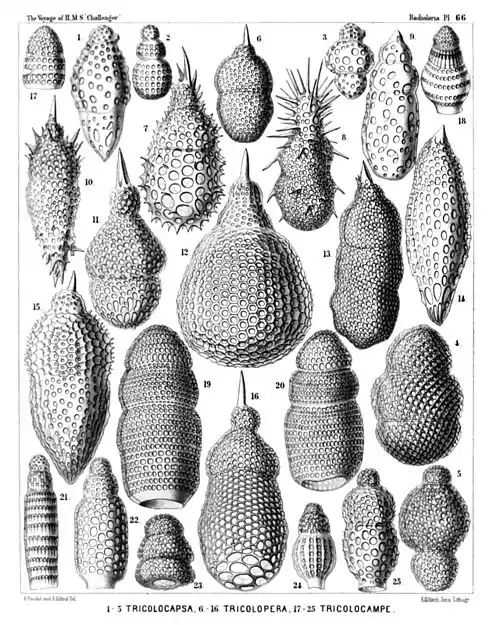

PLATE 66.

Legion NASSELLARIA.

Order CYRTOIDEA.

Family Theocyrtida.


PLATE 66.
Theocyrtida.
Diam. Page.
Fig. 1. Tricolocapsa theophrasti, n. sp., × 400 1432
Fig. 2. Tricolocapsa schleidenii, n. sp., × 300 1433
Fig. 3. Tricolocapsa dioscoridis, n. sp., × 300 1432
Fig. 4. Tricolocapsa decandollei, n. sp., × 300 1433
Fig. 5. Tricolocapsa linnæi, n. sp., × 400 1432
Fig. 6. Theocapsa aristotelis, n. sp., × 300 1427
Fig. 7. Theocapsa mülleri, n. sp., × 400 1431
Fig. 8. Theocapsa democriti, n. sp., × 400 1427
Fig. 9. Theocapsa forskalii, n. sp., × 400 1429
Fig. 10. Theocapsa cuvieri, n. sp., × 400 1430
Fig. 11. Theocapsa wottonis, n. sp., × 400 1428
Fig. 12. Theocapsa darwinii, n. sp., × 300 1431
Fig. 13. Theocapsa linnæi, n. sp., × 400 1429
Fig. 14. Theocapsa wolffii, n. sp., × 400 1429
Fig. 15. Theocapsa malpighii, n. sp., × 400 1428
Fig. 16. Theocapsa lamarckii, n. sp., × 400 1430
Fig. 17. Tricolocampe amphizona, n. sp., × 400 1413
Fig. 18. Theocampe collaris, n. sp., × 300 1425
Fig. 19. Tricolocampe polyzona, n. sp., × 400 1412
Fig. 20. Tricolocampe stenozona, n. sp., × 400 1413
Fig. 21. Tricolocampe cylindrica, n. sp., × 300 1412
Fig. 22. Tricolocampe urnula, n. sp., × 400 1422
Fig. 23. Theocampe stenostoma, n. sp., × 300 1423
Fig. 24. Theocampe costata, n. sp., × 300 1424
Fig. 25. Theocampe sphærothorax, n. sp., × 300 1424
Plate 66.
Plate 66.

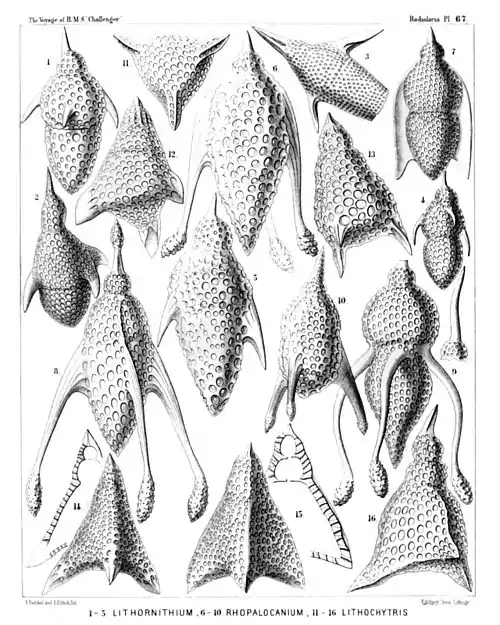

PLATE 67.

Legion NASSELLARIA.

Order CYRTOIDEA.

Family Podocyrtida.


PLATE 67.
Podocyrtida.
Diam. Page.
Fig. 1. Lithornithium falco, n. sp., × 400 1355
Fig. 2. Lithornithium fringilla, n. sp., × 400 1355
Fig. 3. Lithornithium ciconia, n. sp., × 400 1354
Fig. 4. Lithornithium trochilus, n. sp., × 400 1355
Fig. 5. Theopera fusiformis, n. sp., × 400 1357
Fig. 6. Theopera chytropus, n. sp., × 400 1358
Fig. 7. Theopera prismatica, n. sp., × 300 1357
Fig. 8. Theopera cortina, n. sp., × 400 1358
Fig. 9. Rhopalocanium delphicum, n. sp., × 400 1360
Fig. 10. Rhopalocanium lasanum, n. sp., × 300 1359
Fig. 11. Lithochytris lanterna, n. sp., × 300 1364
Fig. 12. Lithochytris cortina, n. sp., × 300 1362
Fig. 13. Lithochytris pyriformis, n. sp., × 400 1362
Fig. 14. Lithochytris lucerna, n. sp., × 300 1364
Fig. 15. Lithochytris pteropus, n. sp., × 300 1364
Fig. 16. Lithochytris galeata, n. sp., × 400 1363
Plate 67.
Plate 67.

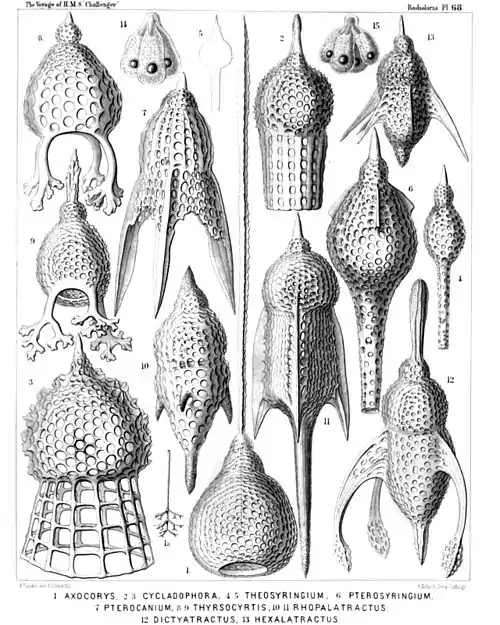

PLATE 68.

Legion NASSELLARIA.

Order CYRTOIDEA.

Families Podocyrtida, Phormocyrtida et Theocyrtida.


PLATE 68.
Podocyrtida, Phormocyrtida et Theocyrtida.
Diam. Page.
Fig. 1. Axocorys macroceros, n. sp., × 300 1420
Fig. 1a. The internal axial rod of the shell, which bears on its basal part three verticils of three diverging forked spines, × 300
Fig. 2. Cycladophora fenestrata, n. sp., × 300 1380
Fig. 3. Cycladophora pantheon, n. sp., × 400 1379
Fig. 4. Theosyringium tibia, n. sp., × 300 1409
Fig. 5. Theosyringium pipetta, n. sp., × 200 1409
Fig. 6. Pterocorys tubulosa, n. sp., × 400 1319
Fig. 7. Pterocanium pyramis, n. sp., × 400 1330
Fig. 8. Thyrsocyrtis rhizopodium, n. sp., × 300 1351
Fig. 9. Thyrsocyrtis arborescens, n. sp., × 400 1350
Fig. 10. Rhopalatractus foveolatus, n. sp., × 400 1361
Fig. 11. Rhopalatractus pentacanthus, n. sp., × 300 1361
Fig. 12. Rhopalatractus fenestratus, n. sp. (vel Dictyatractus fenestratus), × 300 1361
Fig. 13. Hexalatractus fusiformis, n. sp., × 300 1391
Fig. 14. Sethornithium dictyopterum, n. sp., × 300 1356
The trilobate central capsule, which contains in its uppermost part the trilobate nucleus, and in the basal part of each lobe an oil-globule.
Fig. 15. Lophocyrtis synapta, n. sp., × 300 1411
The quadrilobate central capsule, which contains in its uppermost part the quadrilobate nucleus, and in the basal part of each lobe an oil-globule.
Plate 68.
Plate 68.

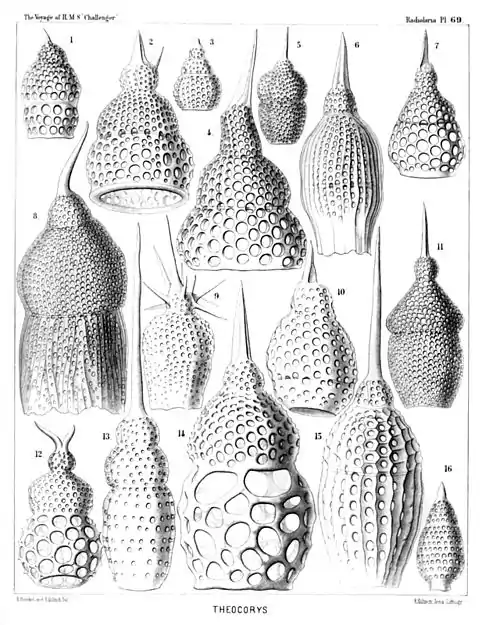

PLATE 69.

Legion NASSELLARIA.

Order CYRTOIDEA.

Families Phormocyrtida et Theocyrtida.


PLATE 69.
Phormocyrtida et Theocyrtida.
Diam. Page.
Fig. 1. Theocorys plutonis, n. sp., × 400 1416
Fig. 2. Lophoconus rhinoceros, n. sp., × 400 1405
Fig. 3. Theocorys apollinis, n. sp., × 300 1418
Fig. 4. Theoconus jovis, n. sp., × 400 1401
Fig. 5. Theocorys veneris, n. sp., × 300 1415
Fig. 6. Phormocyrtis costata, n. sp., × 300 1369
Fig. 7. Theoconus junonis, n. sp., × 300 1401
Fig. 8. Theocyrtis ptychodes, n. sp., × 400 1408
Fig. 9. Lophocorys astrocephala, n. sp., × 300 1421
Fig. 10. Theocorys obliqua, n. sp., × 400 1417
Fig. 11. Theocorys dianæ, n. sp., × 400 1416
Fig. 12. Lophocorys bovicornis, n. sp., × 300 1422
Fig. 13. Theocyrtis macroceros, n. sp., × 400 1407
Fig. 14. Theocorys minervæ, n. sp., × 300 1419
Fig. 15. Phormocyrtis longicornis, n. sp., × 400 1370
Fig. 16. Theocorys ovata, n. sp., × 300 1416
Plate 69.
Plate 69.

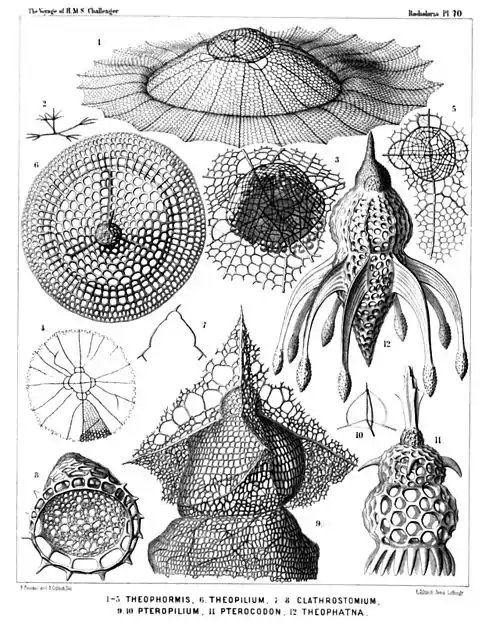

PLATE 70.

Legion NASSELLARIA.

Order CYRTOIDEA.

Families Anthocyrtida, Podocyrtida, Phormocyrtida et Theocyrtida.


PLATE 70.
Anthocyrtida, Podocyrtida, Phormocyrtida et Theocyrtida.
Diam. Page.
Fig. 1. Theophormis callipilium, n. sp., × 300 1367
Fig. 2. Theophormis callipilium, n. sp., × 300 1367
The four cruciate rods of the cortinar septum and the vertical columella in its centre.
Fig. 3. Theophormis callipilium, n. sp., × 400 1367
The cephalis alone with the enclosed quadrilobate central capsule, which is surrounded by numerous xanthellæ.
Fig. 4. Sethophormis umbrella, n. sp., × 150 1248
Fig. 5. Sethophormis umbrella, n. sp., × 400 1248
Cephalis with the cruciform cortinar septum.
Fig. 6. Theopilium tricostatum, n. sp., × 400 1322
Seen from above.
Fig. 7. Phrenocodon clathrostomium, n. sp., × 250 1434
Vertical section through the shell.
Fig. 8. Phrenocodon clathrostomium, n. sp., × 500 1434
Shell seen half from below, and exhibiting the fenestrated septum between thorax and abdomen.
Fig. 9. Pteropilium stratiotes, n. sp., × 400 1326
Fig. 10. Pteropilium stratiotes, n. sp., × 400 1326
The three rods of the cortinar septum and the three arches connecting them with the central axial columella.
Fig. 11. Pterocodon ornatus, n. sp., × 300 1333
Fig. 12. Theophæna corona, n. sp., × 300 1394
Plate 70.
Plate 70.
