< Report on the Radiolaria

PLATE 11.

Legion SPUMELLARIA.

Order SPHÆROIDEA.

Family Astrosphærida.

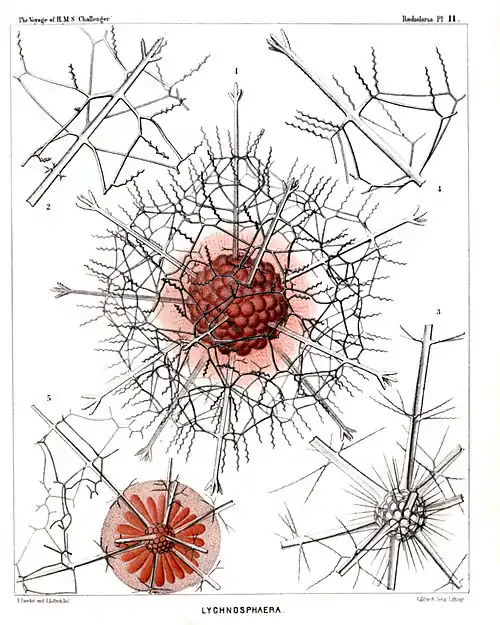

PLATE 11.
Astrosphærida.
Diam. Page.
Fig. 1. Lychnosphæra regina, n. sp., × 200 277
The entire shell and the central capsule. Numerous club-shaped radial apophyses or cœcal sacs arise from the pink central capsule and are protruded through the pores of the medullary shell, which is completely hidden by them. The sarcomatrix in the calymma, surrounding the central capsule, exhibits a fine radial striation. Numerous retracted pseudopodia, bearing red granules, arise from the sarcomatrix and pierce the calymma radially. The interval between the two concentric shells is filled up by the hyaline calymma.
Fig. 2. Lychnosphæra regina, n. sp., × 400 277
A part of the cortical shell, with a radial spine.
Fig. 3. Lychnosphæra regina, n. sp., × 400 277
The medullary shell and the basal parts of the radial spines arising from it.
Fig. 4. Lychnosphæra regina, n. sp., × 400 277
Distal end of a radial spine.
Fig. 5. Rhizoplegma lychnosphæra, n. sp., × 200 276
The central capsule and the enclosed parts of the skeleton. The protoplasm is radially striped. The central nucleus (red) sends out numerous radial apophyses, which are protruded through the pores of the medullary shell.
Plate 11.
Plate 11.



PLATE 12.

Legion SPUMELLARIA.

Orders PHÆOSPHÆRIA et SPHÆROIDEA.

Families Orosphærida, Astrosphærida et Liosphærida.


PLATE 12.
Orosphærida, Astrosphærida et Liosphærida.
Diam. Page.

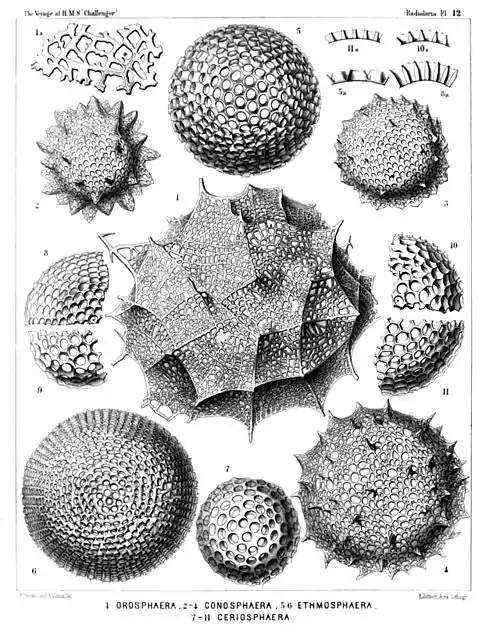

Fig. 1. Orosphæra huxleyii, n. sp. (vel Oroscena huxleyii), × 50 1599
Fig. 1a. A piece of the network, the bars of which contain partly an axial canal, × 200 1599
Fig. 2. Conosphæra orthoconus, n. sp., × 200 221
Fig. 3. Conosphæra platyconus, n. sp., × 300 221
Fig. 4. Conosphæra plagioconus, n. sp., × 300 222
Fig. 5. Ethmosphæra conosiphonia, n. sp., × 400 69
Fig. 5a. Vertical section through the wall.
Fig. 6. Ethmosphæra polysiphonia, n. sp., × 400 70
Fig. 7. Cenosphæra compacta, n. sp., × 300 65
Fig. 8. Cenosphæra elysia, n. sp., × 300 64
Fig. 8a. Vertical section through the wall.
Fig. 9. Cenosphæra mellifica, n. sp., × 300 62
Fig. 10. Cenosphæra favosa, n. sp., × 300 62
Fig. 10a. Vertical section through the wall.
Fig. 11. Cenosphæra vesparia, n. sp., × 300 62
Fig. 11a. Vertical section through the wall.
Plate 12.
Plate 12.



PLATE 13.

Legion SPUMELLARIA.

Orders SPHÆROIDEA et PRUNOIDEA.

Families Stylosphærida et Ellipsida.

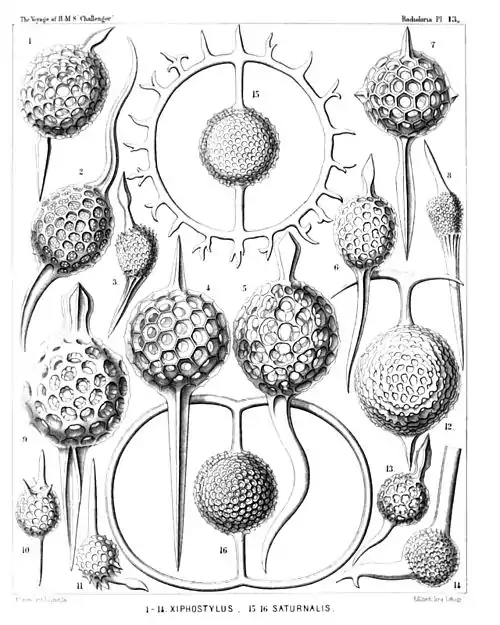

PLATE 13.
Stylosphærida et Ellipsida.
Diam. Page.
Fig. 1. Ellipsostylus aquila, n. sp., × 300 300
Fig. 2. Ellipsostylus hirundo, n. sp., × 300 301
Fig. 3. Ellipsostylus columba, n. sp., × 300 300
Fig. 4. Xiphostylus alcedo, n. sp., × 400 127
Fig. 5. Xiphostylus edolius, n. sp., × 400 130
Fig. 6. Ellipsostylus psittacus, n. sp., × 400 300
Fig. 7. Stylostaurus caudatus, n. sp., × 400 157
Fig. 8. Ellipsostylus ciconia, n. sp., × 300 300
Fig. 9. Xiphostylus phasianus, n. sp., × 400 127
Fig. 10. Xiphostylus trochilus, n. sp., × 300 129
Fig. 11. Xiphostylus emberiza, n. sp., × 300 131
Fig. 12. Saturnalis circoideus, n. sp., × 400 132
Not fully developed.
Fig. 13. Xiphostylus alca, n. sp., × 300 130
Fig. 14. Xiphostylus falco, n. sp., × 300 130
Fig. 15. Saturnalis rotula, n. sp., × 400 133
Fig. 16. Saturnalis annularis, n. sp., × 400 132
Plate 13.
Plate 13.



PLATE 14.

Legion SPUMELLARIA.

Orders SPHÆROIDEA et PRUNOIDEA.

Families Stylosphærida et Ellipsida.

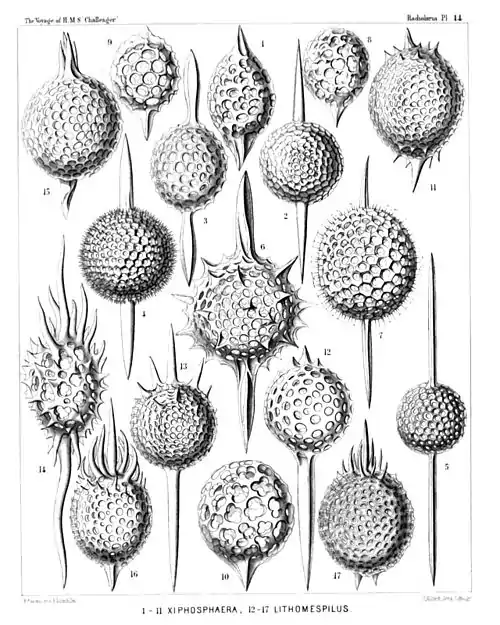

PLATE 14.
Stylosphærida et Ellipsida.
Diam. Page.
Fig. 1. Ellipsoxiphus atractus, n. sp., × 300 298
Fig. 2. Xiphosphæra venus, n. sp., × 300 123
Fig. 3. Ellipsoxiphus claviger, n. sp., × 300 297
Fig. 4. Xiphosphæra pallas, n. sp., × 400 124
Fig. 5. Xiphosphæra gæa, n. sp., × 400 123
Fig. 6. Xiphosphæra vesta, n. sp., × 300 126
Fig. 7. Ellipsoxiphus elegans, n. sp., var. palliatus, × 400 296
Fig. 8. Lithapium halicapsa, n. sp., × 300 303
Fig. 9. Lithapium pyriforme, n. sp., × 300 303
Fig. 10. Lithapium monocyrtis, n. sp., × 300 304
Fig. 11. Ellipsoxiphus bipolaris, n. sp., × 600 297
Fig. 12. Xiphostylus trogon, n. sp., × 400 129
Fig. 13. Xiphostylus picus, n. sp., × 300 129
Fig. 14. Lithomespilus flammabundus, n. sp., × 400 303
Fig. 15. Xiphostylus alauda, n. sp., × 400 128
Fig. 16. Lithomespilus phloginus, n. sp., × 600 302
Fig. 17. Lithomespilus phlogoides, n. sp., × 600 302
Plate 14.
Plate 14.



PLATE 15.

Legion SPUMELLARIA.

Orders SPHÆROIDEA et PRUNOIDEA.

Families Staurosphærida et Druppulida.

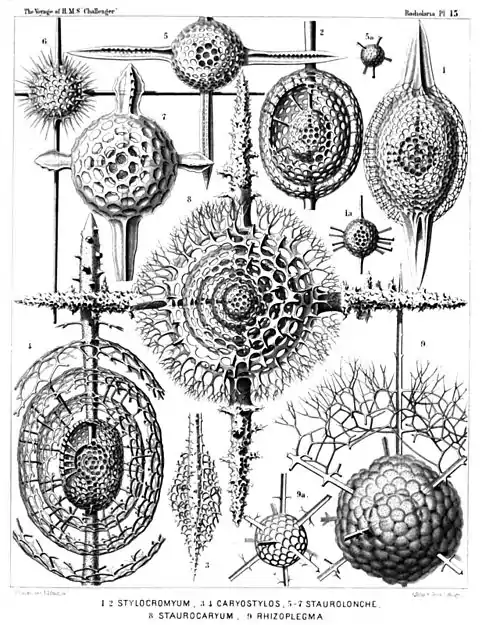

PLATE 15.
Staurosphærida et Druppulida.
Diam. Page.
Fig. 1. Cromyatractus tetracelyphus, n. sp., × 300 335
Fig. 1a. The two inner medullary shells.
Fig. 2. Cromyatractus tetraphractus, n. sp., × 300 335
Fig. 3. Cromyatractus cepicius, n. sp., × 300 336
The spongy distal part of a polar spine.
Fig. 4. Cromyatractus ceparius, n. sp. (vel Caryostylus ceparius), × 300 336
Fig. 5. Staurolonche pertusa, n. sp., × 300 159
Fig. 5a. Its medullary shell.
Fig. 6. Staurosphæra philippi, n. sp., × 300 154
Fig. 7. Stauroxiphus gladius, n. sp., × 400 163
Fig. 8. Staurocaryum arborescens, n. sp., × 300 167
Fig. 9. Rhizoplegma radicatum, n. sp., × 200 276
Fig. 9a. The medullary shell, which is completely hidden in fig. 9 by the numerous club-shaped apophyses of the central capsule.
Plate 15.
Plate 15.



PLATE 16.

Legion SPUMELLARIA.

Orders SPHÆROIDEA et PRUNOIDEA.

Families STYLOSPHÆRIDA et Druppulida.

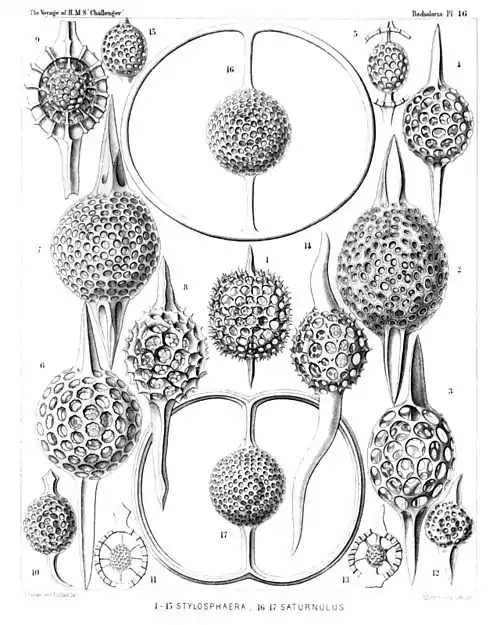

PLATE 16.
STYLOSPHÆRIDA et Druppulida.
Diam. Page.
Fig. 1. Stylosphæra melpomene, n. sp., × 300 135
Fig. 2. Lithatractus jugatus, n. sp., (vel Stylosphæra jugata), × 400 323
Fig. 3. Lithatractus fragilis, n. sp. (vel Stylosphæra fragilis), × 400 319
Fig. 4. Stylosphæra lithatractus, n. sp., × 300
The entire shell.
Fig. 5. Stylosphæra lithatractus, n. sp., × 300
The greater part of the cortical shell and the two spines taken off.
The description of Stylosphæra lithatractus (intermediate between Stylosphæra jugata and Stylosphæra terpsichore, p. 137) is by mistake not given in the text.
Fig. 6. Stylosphæra calliope, n. sp., × 400 134
Fig. 7. Stylosphæra clio, n. sp., × 400 134
Fig. 8. Druppatractus ostracion, n. sp., × 300 326
The entire shell.
Fig. 9. Druppatractus ostracion, n. sp., × 300 326
The anterior half of the cortical shell has been removed.
Fig. 10. Druppatractus hippocampus, n. sp., × 300 324
The entire shell.
Fig. 11. Druppatractus hippocampus, n. sp., × 300 324
The greater part of the cortical shell has been removed.
Fig. 12. Stylosphæra nana, n. sp., × 300 136
The entire shell
Fig. 13. Stylosphæra nana, n. sp., × 300 136
The greater part of the cortical shell taken off.
Fig. 14. Sphærostylus ophidium, n. sp., × 300 140
The entire shell.
Fig. 15. Sphærostylus ophidium, n. sp., × 300 140
The medullary shell alone.
Fig. 16. Saturnulus ellipticus, n. sp., × 400 141
Fig. 17. Saturnulus planetes, n. sp., × 400 142
Plate 16.
Plate 16.



PLATE 17.

Legion SPUMELLARIA.

Orders SPHÆROIDEA et PRUNOIDEA.

Families Stylosphærida, Druppulida et Spongurida.

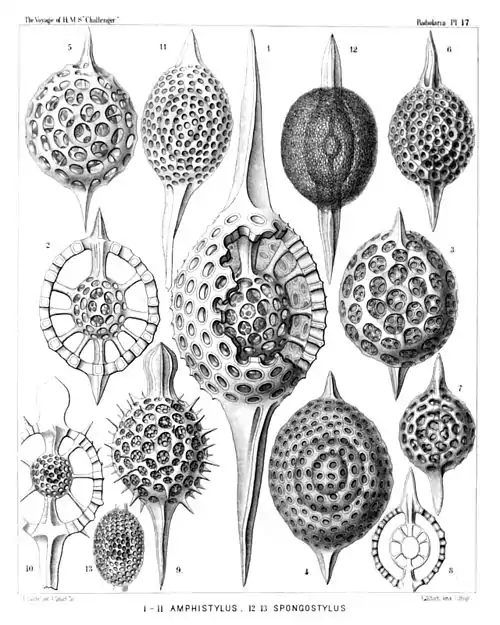

PLATE 17.
Stylosphærida, Druppulida et Spongurida.
Diam. Page.
Fig. 1. Stylatractus giganteus, n. sp. (vel Amphistylus giganteus), × 300 329
Fig. 2. Stylatractus sethoporus, n. sp., × 400 330
The greater part of the cortical shell taken off.
Fig. 3. Stylatractus sethoporus, n. sp., × 400 330
The entire cortical shell.
Fig. 4. Stylatractus compactus, n. sp., × 400 329
Fig. 5. Amphisphæra cronos, n. sp. (vel Amphistylus cronos), × 400 144
Fig. 6. Stylatractus neptunus, n. sp. (vel Amphisphæra neptunus), × 300 328
Fig. 7. Amphisphæra pluto, n. sp., × 300 144
The entire cortical shell.
Fig. 8. Amphisphæra pluto, n. sp., × 300 144
Meridional section through the three concentric shells.
Fig. 9. Xiphatractus glyptodon, n. sp., × 400 334
The entire cortical shell.
Fig. 10. Xiphatractus glyptodon, n. sp., × 400 334
The greater part of the cortical shell taken off.
Fig. 11. Xiphatractus armadillo, n. sp., × 400 332
Fig. 12. Spongoxiphus prunococcus, n. sp., × 300 354
The spongy cortical shell.
Fig. 13. Spongoxiphus prunococcus, n. sp., × 600 354
The two concentric latticed medullary shells.
Plate 17.
Plate 17.



PLATE 18.

Legion SPUMELLARIA.

Order SPHÆROIDEA.

Families Liosphærida et Astrosphærida.

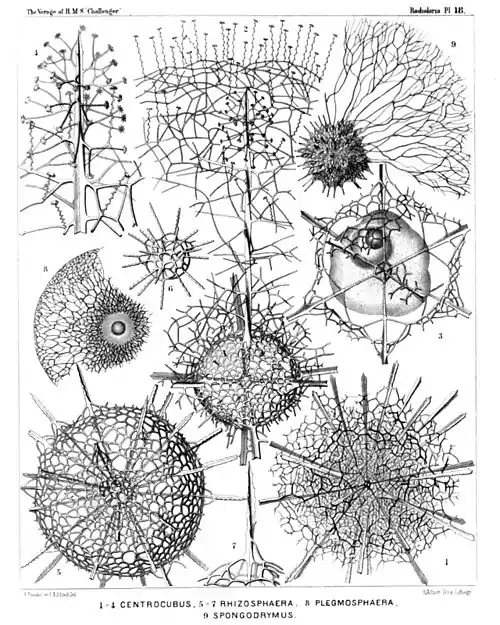

PLATE 18.
Liosphærida et Astrosphærida.
Diam. Page.
Fig. 1. Centrocubus cladostylus, n. sp., × 100 278
Fig. 2. Octodendron spathillatum, n. sp., × 300 280
The entire inner shell, but a small part only of the outer shell is represented.
Fig. 3. Octodendron cubocentron, n. sp., × 400 279
The central capsule (somewhat irregular by compression?) exhibits a large excentric nucleus (probably dislocated artificially?).
Fig. 4. Octodendron spathillatum, n. sp., × 800 280
Free distal end of a radial spine, with the spathillæ on the end of the branches.
Fig. 5. Rhizosphæra serrata, n. sp., × 300 284
Fig. 6. Rhizosphæra serrata, n. sp., × 300 284
Medullary shell.
Fig. 7. Rhizosphæra serrata, n. sp., × 600 284
A single radial spine.
Fig. 8. Plegmosphæra exodictyon, n. sp., × 200 89
The central shell-cavity encloses the spherical central capsule and the concentric nucleus.
Fig. 9. Spongodrymus elaphococcus, n. sp., × 150 272
The entire inner shell, but only a small part of the outer spongy envelope is represented.
Plate 18.
Plate 18.



PLATE 19.

Legion SPUMELLARIA.

Order SPHÆROIDEA.

Family Astrosphærida.

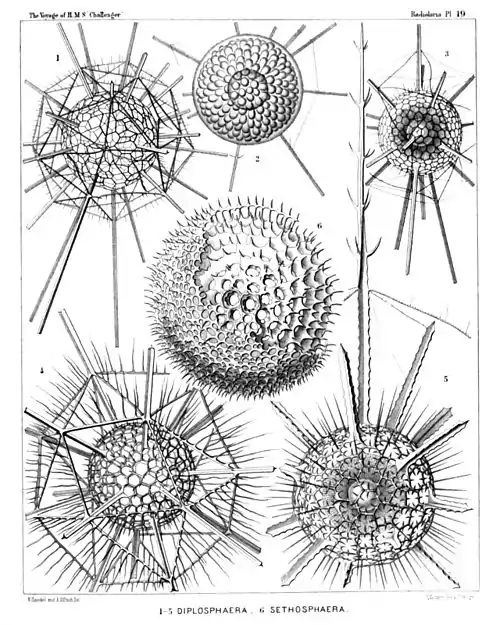

PLATE 19.
Astrosphærida.
Diam. Page.
Fig. 1. Drymosphæra polygonalis, n. sp., × 200 249
Fig. 2. Leptosphæra hexagonalis, n. sp., × 200 244
Showing the central capsule (forming numerous club-shaped protuberances) and the simple spherical nucleus in its centre. The skeleton is nearly the same as in Diplosphæra hexagonalis (fig. 3).
Fig. 3. Diplosphæra hexagonalis, n. sp., × 200 246
The spherical central capsule, with radially striped protoplasm, is enclosed in the inner shell, and exhibits in its centre the clear spherical nucleus.
Fig. 4. Astrosphæra hexagonalis, n. sp., × 300 250
Fig. 5. Astrosphæra stellata, n. sp., × 300 251
The central capsule, enclosed in the inner shell, exhibits a distinct radial striation of the protoplasm, and in the centre a clear spherical nucleus.
Fig. 6. Haliomma rhodococcus, n. sp. (vel Sethosphæra rhodococcus), × 400 237
The greater part of the outer shell is removed.
Plate 19.
Plate 19.



PLATE 20.

Legion SPUMELLARIA.

Order SPHÆROIDEA.

Families Liosphærida et Astrosphærida.


PLATE 20.
Liosphærida et Astrosphærida.
Diam. Page.
Fig. 1. Drymosphæra dendrophora, n. sp., × 300 249
Fig. 1a. Meridional section through the central capsule. In the centre the large spherical nucleus is visible. The protoplasm around it is distinctly radiate. From the central capsule arise numerous club-shaped apophyses or cæcal sacs, which are protruded through the meshes of the inner shell, × 300
Fig. 1b. Basal part of a single radial spine, and its connection with the network of the two shells, × 400
Fig. 2. Liosphæra polypora, n. sp., × 300 78
The greater part of the outer shell is removed.
Fig. 3. Liosphæra hexagonia, n. sp., × 400 76
Fig. 4. Carposphæra melitomma, n. sp. (vel Melitomma melittosphæra), × 400 73
Plate 20.
Plate 20.
