Possible Duplicate:
Is a DDR3 MB compatible with DDR2 RAM?
would ddr2 memory work in a motherboard with ddr3 standard?

I just ran into something really weird.

My computer has DDR3 RAM. And the website from my mobo says it only supports DDR2. (I find this out, 2 years after buying the PC)

What are the consequences of this?

And how is this even possible? I thought DDR3 ram had a different shape from DDR2 ram?

Motherboard specs:

enter image description here

RAM specs:

enter image description here

Community
  • 1
Simon Verbeke
  • 3,713
  • 9
  • 42
  • 63
  • 1
    They _are_ shaped/keyed differently. :) How about some model numbers and such so we know what MB/RAM you are talking about? Perhaps the manual has a typo (it wouldn't be the first one)? See [Is a DDR3 MB compatible with DDR2 RAM?](http://superuser.com/questions/75402/is-a-ddr3-mb-compatible-with-ddr2-ram) for good info. – Ƭᴇcʜιᴇ007 Nov 26 '11 at 20:54
  • Added specs. :) – Simon Verbeke Nov 26 '11 at 20:58
  • 1
    Can you confirm (with an edit) that you are sure you are looking at the right motherboard specs? – vcsjones Nov 26 '11 at 21:07
  • 1
    Are you sure you the exactly right MB? What does the Mainboard tab of CPU-Z show? – shf301 Nov 26 '11 at 21:09
  • 1
    That's not right, I think you think you have a different motherboard then you actually do :). What does CPU-Z show under the "Mainboard" tab? – Ƭᴇcʜιᴇ007 Nov 26 '11 at 21:11

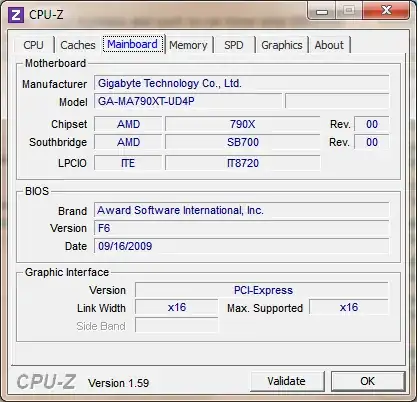

  • Added screenshot of mobo :) – Simon Verbeke Nov 26 '11 at 21:17
  • 3
    It's possible, but would probably require a pair of cutters, hacksaw, glue and a trip to get some more RAM and a new motherboard. Nope, can't actually be done - one part of the provided info is not right. – Linker3000 Nov 26 '11 at 21:21
  • 1
    Seems like I found the mistake. I missed the little `T` in the mobo's name... that one does support DDR3. – Simon Verbeke Nov 26 '11 at 21:24

1 Answers1

9

Your motherboard supports DDR3 RAM. See the manufacturer's page for the GA-MA790XT-UD4P. Your previous link was to the GA-MA790X-UD4P. Note the missing T in the second model number.
