I have Yamaha PSR E353 model keyboard, but I don't know kow to connect this keyboard to my home theater system.

I have used an Aux-In cable for this, but it’s not working.

How can I connect this keyboard to my home theater system?

enter image description here

Todd Wilcox
  • 53,618
  • 6
  • 108
  • 185
Rushikesh Solanki
  • 123
  • 1
  • 1
  • 5

1 Answers1

3

I used Aux cable, and keyboard port name is Aux In

This is the problem! :)

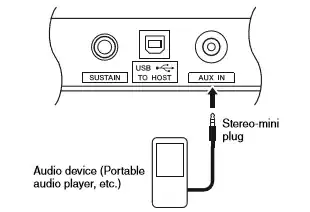

As you will see from page 30 of the manual here, the Aux in port is when you want to play a song out of the Yamaha PSR E353's speakers:

enter image description here

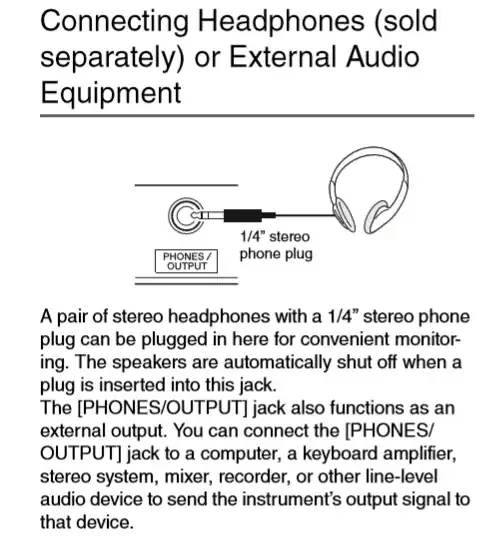

If you want the sound to come out of the Yamaha, you need to use the PHONES/OUTPUT jack. Again from the manual:

enter image description here

So you need to connect the PHONES/OUTPUT jack to your home theatre system. It looks like the plug is a different size, but if you have something like a 3.5mm Stereo to 6.3mm 1/4-inch Adapter... enter image description here

...you may be able to use the same wire.

Нет войне
  • 45,699
  • 3
  • 75
  • 157
  • 1
    Basic - if a port says 'in' it's for a signal to go 'in'. Same idea with 'out'. – Tim May 20 '18 at 06:58
