It's possible to get some crazy sounds using an EBow on the guitar. I know that it works by creating an electromagnetic field to move the strings. Has anybody tried to build one? Are any schematics available?
Asked
Active
Viewed 2,059 times
10
-
2The ebow doesn't just use an electromagnet, it also senses the pitch of the string using a small pickup, and amplifies the pitch using the electromagnet causing the sustain. If it didn't use a pickup, the pitch it would have to use an arbitrary frequency, which would cause the string's vibrations to cancel or switch to odd harmonics. – Mar 05 '11 at 16:58
-
You might also get answers at [the Electronics SE site](http://electronics.stackexchange.com/). – Goodbye Stack Exchange Mar 05 '11 at 18:52
1 Answers
6

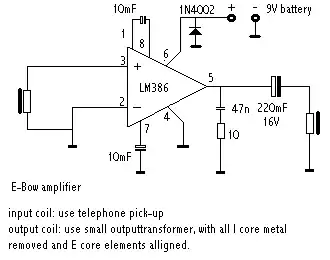

Take a look at this page. It provides some decent background technical information.
It sounds like a fairly interesting DIY project, considering as real ones go for over £70-80!
Hope this helps.
Ali
- 6,683
- 1
- 24
- 44
-
of course calling the contraption an e-bow (and especially trying to sell it) would cause you serious legal trouble. It's a trademarked name, and there might be patents involved as well. – Mar 07 '11 at 07:00
