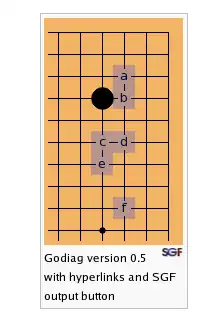

Installation & config

1. Create a directory for godiag and make it writeable by the web server and accessible via HTTP.
2. Copy the file to MediaWiki's extensions directory.
3. Add the following to your LocalSettings.php:

require_once('extensions/godiag.php');
$wgGodiagDirectory = "/sys/path/to/dir";        // e.g. "$IP/godiags"
$wgGodiagPath = "/url/path/to/dir";         // e.g. "$wgScriptPath/godiags"
$wgGodiagTTFont = "/path/to/truetypefont";  // e.g. "/usr/share/fonts/bitstream-vera/Vera.ttf"

printf "application/sgf\t\t\tsgf" >> /etc/mime.types
(restart web server)

require_once('extensions/godiag.php');
$wgGodiagDirectory = ...;
$wgGodiagPath = ...;
$wgGodiagTTFont = ...;
$wgGodiagHintRegex='/(\d|10) (?:at|on|на|върху) (\d)/';
$wgGodiagSgfLinkText = ''; // usually = '' since an image is used
$wgGodiagSgfLinkTitle = 'сваляне на SGF'; // "download SGF"
$wgGodiagSgfComment = 'SGF diagrama ot RomanizedWikiName'; // ASCII(!) comment

Go diagram styles

Godiag comes with two predefined styles, "normal" and "large". You may specify the style for a diagram by starting it with

<go>
$$#stylename title
...

(put any options like 'W' and 'c' or board size before the '#', like $$Wc13#large title).

You may define more styles, e.g. in LocalSettings.php:

$wgGodiagStyles['mystyle'] = array( /* ... */ ); // see source for two examples
$wgGodiagDefaultStyle='mystyle';                 // make it default

Syntax

The syntax is in most cases compatible with http://senseis.xmp.net/ but usually less strict. There are also a few extensions. In short:

• put things between:

<go>
$$ title

and

</go>

• use these symbols:

| vertical border
- horizontal border
. unoccupied point
, hoshi point
X     black
O     white
B     black circled
W     white circled
#     black with square
@     white with square
C     circled point
S     point with square
0-9   numbered moves (0=10); black is first by default
a-z   marked points
_     empty space (useful as separator and for other effects)

• place options after the initial '$$'
  • B — black player makes move 1 (default)
  • W — white player makes move 1
  • b — insert a break after the image; The following text will appear below the image.
  • c — draw coordinate markers
  • l — float left
  • r — float right (default)
  • 1–40 — specify board size (default is 19). Useful for sizes above 19 and as a hint to SGF.
  • Example: $$Wc13 Hello world
• you can add hyperlinks at the end, e.g.:

[a|WikiPageAboutMarkedPointA]
[3|WikiPageAboutMarkedStone3]
[C|http://link.to.example.com/circled-point.html]

• add "X at Y" hints to the SGF generator in the title, e.g. "A mysterious disappearance (9 at 3)" will create an SGF with moves 3 and 9 on the same spot.

Maintenance

• Remove older files in godiag-dir/tmp (files used in previews, leftovers from failed generations)
• If you want to recreate the SGF/PNG files, empty the png/sgf subdir and set $wgCacheEpoch in LocalSettings.php to the current server time: $wgCacheEpoch = 'YYYYMMDDHHMMSS';.

Example 1

A simple example with extra spacing

<go>
$$ A simple example with extra spacing
 -------------------
| . . . . . . . . . |
| . . . . . . . . . |
| . . , . 2 . , . . |
| . . . . . . . . . |
| . . . . 1 . . . . |
| . . . . . . . . . |
| . . , . . . , . . |
| . . . . . . . . . |
| . . . . . . . . . |
 -------------------
</go>

Example 2

A complicated example with marks, numbers, hyperlinks, border just on one side

<go>
$$ A complicated example with marks, numbers, hyperlinks, border just on one side
|..1.__.2.
|..a.__.b.
|..W.__.@.
|..B.__.#.
|..C.__.S.
[2|Wikipage]
[a|http://example.com]
[S|Wikipage2]
[@|Wikipage3]
</go>

Example 3

White can also be first (begin with $$W) + there are shortcuts

<go>
$$W White can also be first (begin with $$W) + there are shortcuts
-
|.
.
..,...X
.
....,
.....1
..X...,..|
.
.
-
</go>

Stylesheet example

Add this to MediaWiki:Monobook.css (or MediaWiki:Yourskin.css) within the wiki for a start:

 .godiag-left { /* for br and div */
        clear: left;
 }
 .godiag-right { /* for br and div */
        clear: right;
 }
 div.godiag { /* for backwards compatibility with ver <= 0.7 */
        float: right;
        clear: right;
        margin: 0 .5em .5em 1em;
        background-color: #f9f9f9;
        border: 1px solid silver;
 }
 div.godiag-left {
        float: left;
        margin: .5em 1em .5em 0;
        background-color: #f9f9f9;
        border: 1px solid silver;
 }
 div.godiag-right {
        float: right;
        margin: .5em .5em .5em 1em;
        background-color: #f9f9f9;
        border: 1px solid silver;
 }
 div.godiagi {
        padding: 0.5ex;
 }
 div.godiagheading {
        font-size: 94%;
        padding-top: 0.5ex;
 }
 div.godiagsgf {
        width: 22px;
        height: 9px;
        float: right;
 }
 div.godiagsgf a {
        background: url("/path/to/Download_sgf.png") 0 0 no-repeat;
        display: block;
        width: 22px;
        height: 9px;
 }

Download_sgf.png =
