I apologize if this question has been asked or the answer is obvious. I am unfamiliar to the terminology so searching things up is a major difficulty.

I have two flat, long pieces of wood and I want to 'mate' their ends such that both can rotate about that point. I call it a 'rotating joint.' The two pieces of wood would be overlapping. Here is a video of what I am attempting to build:

https://fredericphilips.wordpress.com/projects/swarm-robots/hardware/gripper-design/

The 'joints' can be seen in the four areas, two on each arm.

I would appreciate help determining what components I need and how they come together.

After research, what I believe I need is a bolt, a bearing/bushing and a nut. I would drill a hole, insert the bearing, insert the bolt through the bearing, and tighten with a nut.

Michael Karas
  • 63,732
  • 7
  • 60
  • 141
user2316667
  • 151
  • 1
  • 3

1 Answers1

3

I would not use a bolt for this, although you can. There are various ways to do this. The simplest just requires a rod and two push caps.

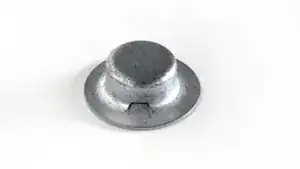

Drill a hole through the wood and sand it with a fine circular file to fit a rod. Cut the rod to size using (for example) a cutoff disk. Get two push caps and use them to secure the rod/axle. Push caps look like this and you can find them in any hardware store:

push cap

They are also called "roller caps". To make a smoother action you can insert a bushing in each piece of wood, but that is probably overkill.
