What is the right way to clear the drilled plug out of a hole saw?

Question

I am building a project where I am using a hole saw. After drilling through 2, 1" thick boards I have to clear the scrap out of the saw. This is a really slow process and I suspect I am doing it wrong.

Clamp the two boards I am drilling together and then clamp them in my jig.
Cut my holes.
Unlock the arbor
Unscrew the hole saw from the arbor
Use a screwdriver to poke, pry, and pound the scrap out of the saw
Remount the saw to the arbor
Repeat

What is the right way to do this? Is there a faster (but still safe) solution?

I am using a Milwaukee Hole Saw Arbor with a Milwaukee 2 3/8" hole saw. I am using the pilot bit.

What the hell did the the saw do to you, that you decided to pound the scrap out of it?! — ThePopMachine, Jul 08 '14 at 14:40

score 11 · Accepted Answer · edited Jun 16 '20 at 10:07

11

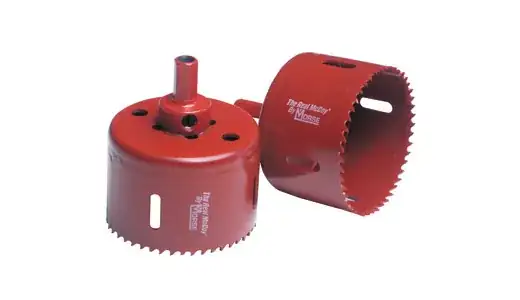

Ideally, hole saws have holes or slots in their sides, so you can pry out the scrap, or in the top so you can push it out.

_{(source: mkmorse.com)}

Poke in there with a screw driver or other sharp object. You shouldn't need to disassemble everything; just unplug the drill.

I assume yours don't have this already. If you are going to be doing this a lot, you might want to buy a new hole saw with better holes.

Alternatively, you can try drilling holes in the top of yours. Secure the hole saw in a vice or otherwise clamp it down firmly, and drill two holes on opposite sides in the top.

With two holes in the top, you can just push out the scrap with two large pins or nails.

Edit: some have larger side holes which may be easier to clear out. You could possibly enlarge the holes on yours with a file.

edited Jun 16 '20 at 10:07

Community

1

answered May 29 '14 at 16:27

Grunthos

1,448
11
17

My saw has the side holes but not the top ones. I am using a saw with a pilot bit. That bit makes it harder to pry the plug out. It does not wiggle back and forth as easily. – Freiheit May 29 '14 at 16:30
Also, try pushing the scrap sideways as well as down, so it "unscrews" along the pilot drill bit. – Grunthos May 29 '14 at 16:33
2

Make sure to clear each one out, don't drill two, then try to clear both out at the same time. If you still find them hard to remove, use two screwdrivers simultaneously, one in each side, and lever the plug out from both sides. This should be fairly quick since you won't be rocking it back and forth and having it bind on the pilot bit. This requires a bit of coordination, though, and you'll need to make sure you don't accidentally hit the trigger while doing this. – Adam Davis May 30 '14 at 00:20

score 9 · Answer 2 · answered May 29 '14 at 17:19

If all else fails, you can drive a screw or two into the face of the plug and use those to twist/pull it out.

But, yeah, using the side slots to push (alternating from one side to the other) and/or the top holes (ditto) is the official solution. Some pro-quality saws have steps along the side slot, which can be helpful in providing additional leverage points.

score 7 · Answer 3 · answered Jul 27 '16 at 20:50

7

You can also drill halfway through the board, then turn it around and drill from the other side using the pilot hole to properly align the drill. The scrap piece will end up only halfway in the hole saw, and it's much easier to grab hold of it and remove it.

answered Jul 27 '16 at 20:50

Mark

3,431
2
14
19

1

this what i do and it is usually successful but it can not be done in some situations. – Alaska Man Jul 27 '16 at 21:00

score 3 · Answer 4 · answered May 29 '14 at 22:08

3

Spray the inside of the bit with wd40 before making the cut. It should now be much easier to push out the scrap. If not, make the cut 90%, and then apply the spray, and then complete the cut.

answered May 29 '14 at 22:08

Dan R

31
1

This could be dangerous, especially if the bit is hot from drilling. I'm not sure of the ignition point of WD40, or the average temperature of a hole saw during cutting. I do know, I wouldn't spray any aerosol near a potential ignition source. (according to the [MSDS for WD40](http://www.wd40company.com/files/pdf/msds-wd494716385.pdf), the flash point is 122°F (49°C). It also specifically says "***DANGER!** Flammable aerosol... Keep away from heat, sparks and all other sources of ignition.*). – Tester101 May 30 '14 at 12:01
2

wd40 is not a lubricant, if you want try this method use a dry silicone lube. – Alaska Man Jul 27 '16 at 20:59

score 3 · Answer 5 · answered Dec 07 '14 at 23:11

3

Drill two small pilot holes in the plug on either side of the center. Then drive in screws twice as long as the depth of the hole saw into the pilot holes. When the screws bottom out continue screwing and they will drive the plug out. If its a deep plug, you will need to alternate screws to keep the plug from binding.

Apparently the pilot holes are needed to prevent the screws from wedging the plug into the sides.

answered Dec 07 '14 at 23:11

Ross Williams

31
1

This is the way to do it. Takes an easy 30 seconds to remove a plug. – Kurt Jun 30 '17 at 06:03

score 3 · Answer 6 · answered Jul 27 '16 at 19:46

I'm too late to help the original ask-er with his project. But if you don't need the plugs, use a spade bit instead of hole-saw when possible.

(I came across this post to I was asking the same question, but I need the plugs - drywall - to be able to put back in place.)

score 2 · Answer 7 · answered Jun 22 '19 at 13:59

This won't be possible in many circumstances, but it would work in the one you describe:

Place a third board (scrap wood) below the other two.
Screw the second board to the third.
Screw the first to the second.

The screws should be within the cut-out area, but not close to the pilot hole or the blade.

The saw should be easy to remove while it's still spinning after cutting through the first two boards.

Note that it might be easier to use longer screws that go through all boards.

score 2 · Answer 8 · answered Jul 07 '14 at 16:36

2

Drill a smaller radius hole first, with its edge just kissing the inner edge of the hole you care about, then make your larger diameter cut. The cut should go a bit faster now since you have a clearance hole for chips, and it gives you a way to grab the circle left in your saw.

answered Jul 07 '14 at 16:36

aaron

1,163
1
7
17

Except then he'll have the same annoyance removing the waste after drilling the clearance hole. – whatsisname Jul 07 '14 at 18:41
...with a regular drill bit. Like, 1/2". – aaron Jul 08 '14 at 18:22

score 1 · Answer 9 · edited Jul 19 '19 at 18:55

1

No hole-saw kit is complete without a plug remover:

_{(source: deepholesaws.com)}

Might find them at Home Depot or the like. They work well for rough cut, but the finer the teeth, the tighter its going to be stuck in there. Reaming a few times before you punch through helps.

edited Jul 19 '19 at 18:55

Glorfindel

1,173
2
14
20

answered Jul 07 '14 at 13:01

Mazura

13,169
1
17
54

Daniel McGregor · Answer 10 · 2023-01-06T22:39:57.623

0

Grab your impact driver and screw 3 or 4 2 1/2" screws into the wood plug from the top in sequence. The screws will push against the base of the arbour and push the wood plug up and out.

edited Jan 06 '23 at 22:39

answered Jan 06 '23 at 22:39

Daniel McGregor

1
1

This is essentially identical to the answer already posted by @Ross Williams. – A. I. Breveleri Jan 07 '23 at 00:44

score 0 · Answer 11 · answered May 29 '14 at 19:41

0

Along with using the slots on the sides (the new Lenox saws are the BEST with the wide stepped slots) many times we have to remove the cup from the arbor and poke out the slug.

answered May 29 '14 at 19:41

Speedy Petey

16,256
2
26
49

score 0 · Answer 12 · answered May 29 '14 at 20:27

You may not have the clearance to do this with 1" thick boards, but I had to cut a ton of 1.5" holes in 1/4" plywood. After almost stabbing myself with a screwdriver. I felt your frustration and ended up driving a nail with a large flat head into the wood. Then using some pliers, grabbing the nail and pulling out the scrap. This was really helpful to me.

This technique also depends on how important the scrap circle is to you.
