Hello community!

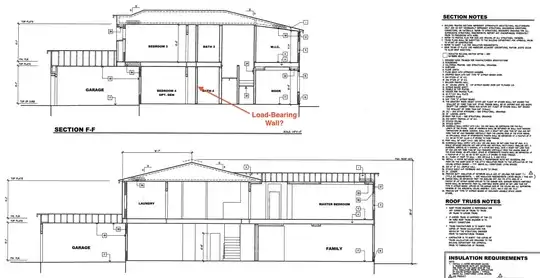

I wanted to ask if anyone could assist in figuring out whether this wall is load-bearing based on this architectural building plan?? This wall is currently the back of a reach-in closet, but I wanted to build an interior door connecting the bedroom to the adjoining bathroom. Sorry I'm a newbie to all this, but very excited to figure it out. TIA!

EDIT: Based on the comments, I've added additional pics for clarity

  • pretty sure this is a Truss roof: there are comments in the building plans that say truss roof, and this home was built in the last 15 years
  • this wall is on the first story/ground level: so no column below. That being said there are 3 columns in the living room area outside this room, none of which directly line up with this wall

enter image description here

enter image description here

enter image description here

HAV000
  • 1
  • 2
  • 3
    This is pretty impossible to tell without a full set of plans including roof framing. Is this a truss roof ? Chances are this is not a bearing wall but cannot be definitive without more info. – Kyle Apr 24 '22 at 06:33
  • 4
    Get an engineer to tell you. Trusting denizens on the net is not good in this case. – Solar Mike Apr 24 '22 at 07:34
  • Is there a column below this wall? – Phil Freedenberg Apr 24 '22 at 16:47
  • Thank you. Based on the comments, I've added additional pics for clarity - pretty sure this is a Truss roof: there are comments in the building plans that say truss roof, and this home was built in the last 15 years - this wall is on the first story/ground level: so no column below. That being said there are columns in the living room, none of which directly line up with this wall – HAV000 Apr 24 '22 at 21:00

0 Answers0
