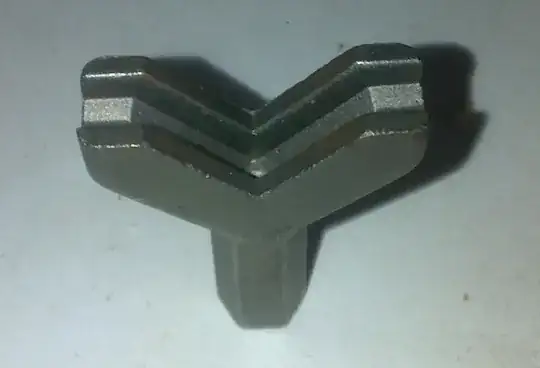

I've asked around at local stores and they had no idea what it was.

A ceramic part in the valve broke so I can't just pick up a generic o-ring.

The stem has 16 teeth and 0.4" 0.365" diameter. The valve is 5 inches long.

enter image description here

enter image description here

Ryan
  • 61
  • 5
  • 2
    excellent photos! sorry i can't help. – Jasen Sep 17 '19 at 08:06
  • Does the lack of a brand mark mean this fixture would have been made in the Far East? Do all of the domestically manufactured faucets have a brand mark? Or have there always been domestically manufactured faucets that were without a brand mark? – Jim Stewart Sep 17 '19 at 10:00
  • 1
    @JimStewart, if anything had a brand, it would be the spout. In the US, handles typically don't have marks and neither do the cartridges. That said, there are a few big brands that are popular. Cheap no-brand stuff is more common now that people can order stuff online, but not very common even in the recent past. – JPhi1618 Sep 17 '19 at 14:09
  • 1
    I tried to find it on this site, but couldn't. Count the number of splines on the top where the handle attaches and see if you can have better luck: https://www.faucetpartsplus.com/ – JPhi1618 Sep 17 '19 at 14:21
  • Based on spline count/size stuff points to sterling which seemed wrong. I have no idea what the norm is for domestic faucets are (in the US), I've been lucky enough to not have to do much plumbing. I pasted an answer, I actually read the text on the aerator before and thought it said "hardened" (and found it quite strange it would say that on brass). Couldn't find any markings on the bath itself though. – Ryan Sep 21 '19 at 01:43
  • [How to identify an old compression stem in order to find a replacement](https://diy.stackexchange.com/a/68705/23295) @JPhi1618 - It's a lot easier to read my transcript of that here. – Mazura Sep 21 '19 at 01:53

1 Answers1

1

I found a brand on the sinks that are the same style. The company that made the faucet appears to be Harden. The style of the cartridge has similarities to others I'm seeing online for Harden.

The part appears to be "harden 185"

enter image description here

Ryan
  • 61
  • 5
  • If it's a Harden, it's a .370" broach. If it's actually .40", it's a Sterling. [How to identify an old compression stem in order to find a replacement](https://diy.stackexchange.com/questions/68702/how-to-identify-an-old-compression-stem-in-order-to-find-a-replacement) – Mazura Sep 21 '19 at 01:49
  • You would appear to be correct. That's my bad for being too lazy to get a better measuring tool. – Ryan Sep 21 '19 at 02:00
  • NP. Excellent work. Keep 'em coming, and check out some of our other sites. – Mazura Sep 21 '19 at 02:02
