I just moved into an apartment and the faucet in the tub is fine when all of the water is off. It leaks when I turn on the water and switch it to the shower head. What could be the problem? It's a rental so I don't want to take the switching mechanism off to investigate. I suspect it's some sort of rubber seal in the switch.

UPDATE

The control is a twist knob between the cold and hot twist knobs.

milesmeow
  • 4,890
  • 24
  • 96
  • 131

1 Answers1

5

Sounds like the washers/gaskets on the valve have gone bad, you'll have to either replace the washer or the entire valve (if you can find a replacement).

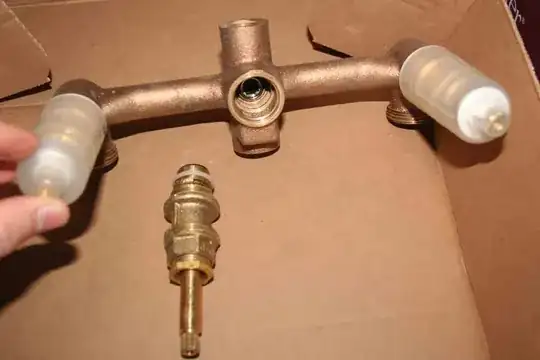

Here is what the valve may have looked like when it was new (just to give you an idea of what you're dealing with).

enter image description here

Removal

  • Turn off the water to the shower faucet using either a local shutoff valve or the main water valve for the house.

  • Turn the shower’s hot and cold water all the way on, to drain leftover water from the pipes.

  • Pry the cap out of the center of the diverter’s handle.

  • Remove the screw in the middle of the handle, and then pull the handle off the faucet.

  • Unscrew the metal sleeve that sits over the valve stem.

  • Insert a Shower Valve Socket Wrench over the valve stem and turn the dirervter anti-clockwise to remove it.

enter image description here

enter image description here

Installation

Installation is the reverse of removal.

  • Insert a Shower Valve Socket Wrench over the valve stem and turn the dirervter clockwise to install it.
  • Screw on the metal sleeve that sits over the valve stem.
  • Push the handle on the faucet, then replace the screw in the middle of the handle.
  • Push the cap into of the center of the diverter’s handle.
  • Turn the shower’s hot and cold water all the way off.
  • Turn on the water to the shower faucet using either a local shutoff valve or the main water valve for the house.
Tester101
  • 130,386
  • 77
  • 314
  • 605
  • 1
    Thanks @shirlockhomes. I spent enough time on the site, it's about time I finally learned something and was able to give a good answer ;) I think in this situation though, the true answer is "call the land lord to fix it". – Tester101 Dec 01 '11 at 01:48
